INSPECTION

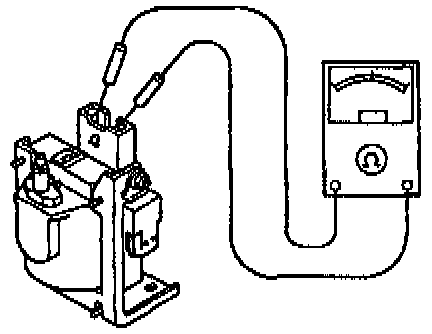

Primary Coil Winding
1. Disconnect the ignition coil connector from the ignition coil.




2. Use an ohmmeter to measure resistance of the primary coil winding.

Specification: Approx. 0.4 Ohm [at 20°C {68°F}]

3. If not as specified, replace the ignition coil.

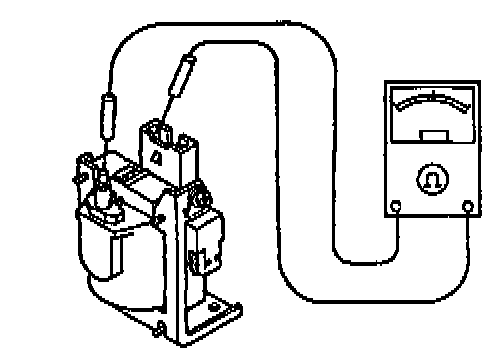

Secondary Coil Winding
1. Disconnect the high-tension lead from the ignition coil.




2. Use an ohmmeter to measure resistance of the secondary coil winding.

Specification: Approx. 8.7 k Ohm [at 20°C {68°F}]

3. If not within the specification, replace the ignition coil.
