Home
>>
Mazda
>>
1995
>>
626 V6-2496cc 2.5L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

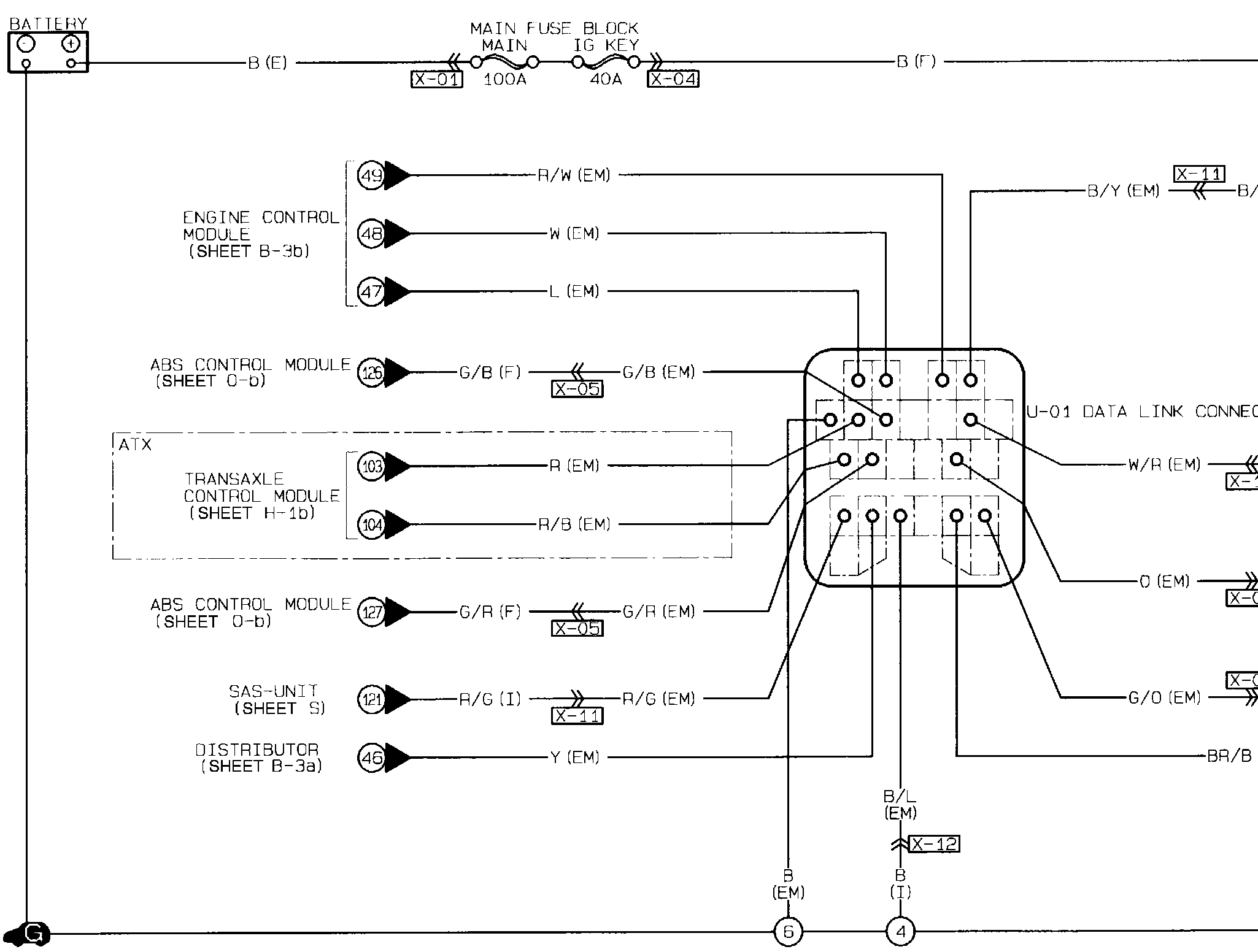

r;�4Data Link Connector:
