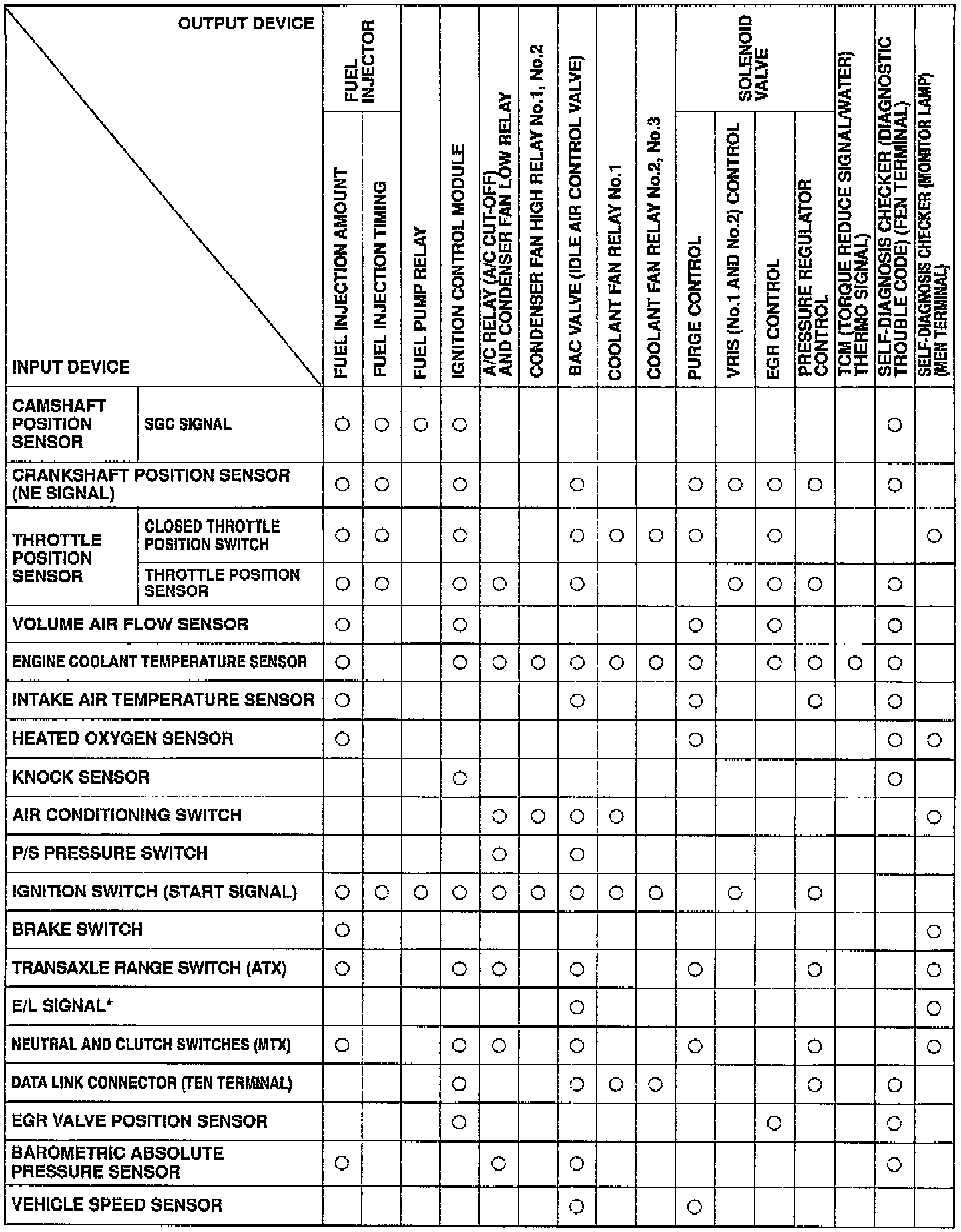

Control System Device and Relationship Chart
Control System Device and Relationship Chart

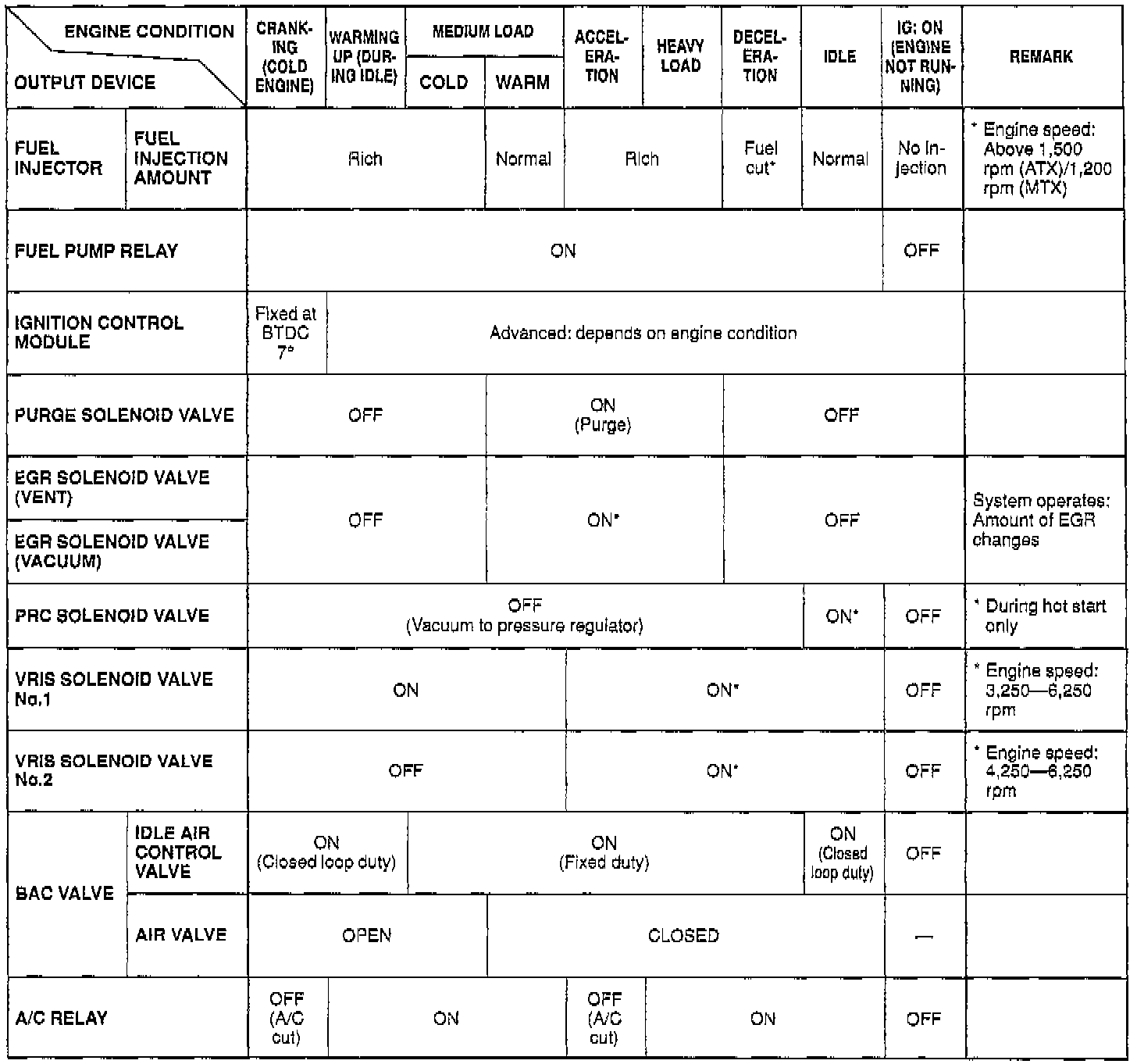

Output Devices And Engine Condition:
