EGR Valve: Service and Repair

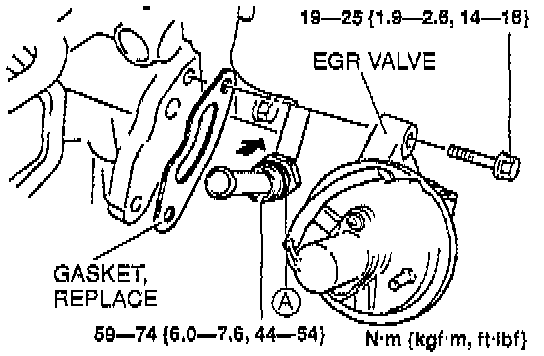

REPLACEMENT
1. Disconnect the EGR hose.
2. Disconnect the vacuum hose.
3. Disconnect the EGR valve position sensor connector.




4. Remove the EGR valve.
5. Remove the gasket.
6. Install in the reverse order of removal.

Tightening torque: 19-25 N-m (1.7-2.2 in.lb)

Note: If nut A is difficult to remove (stuck), first remove the following and then remove the nut together with the EGR pipe from under the vehicle.

(1) Transverse member
(2) Front pipe
(3) Insulator (California)
(4) EGR pipe
(5) Warm up three way catalytic converter (California)
