Home >> Mazda >> 1995 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry

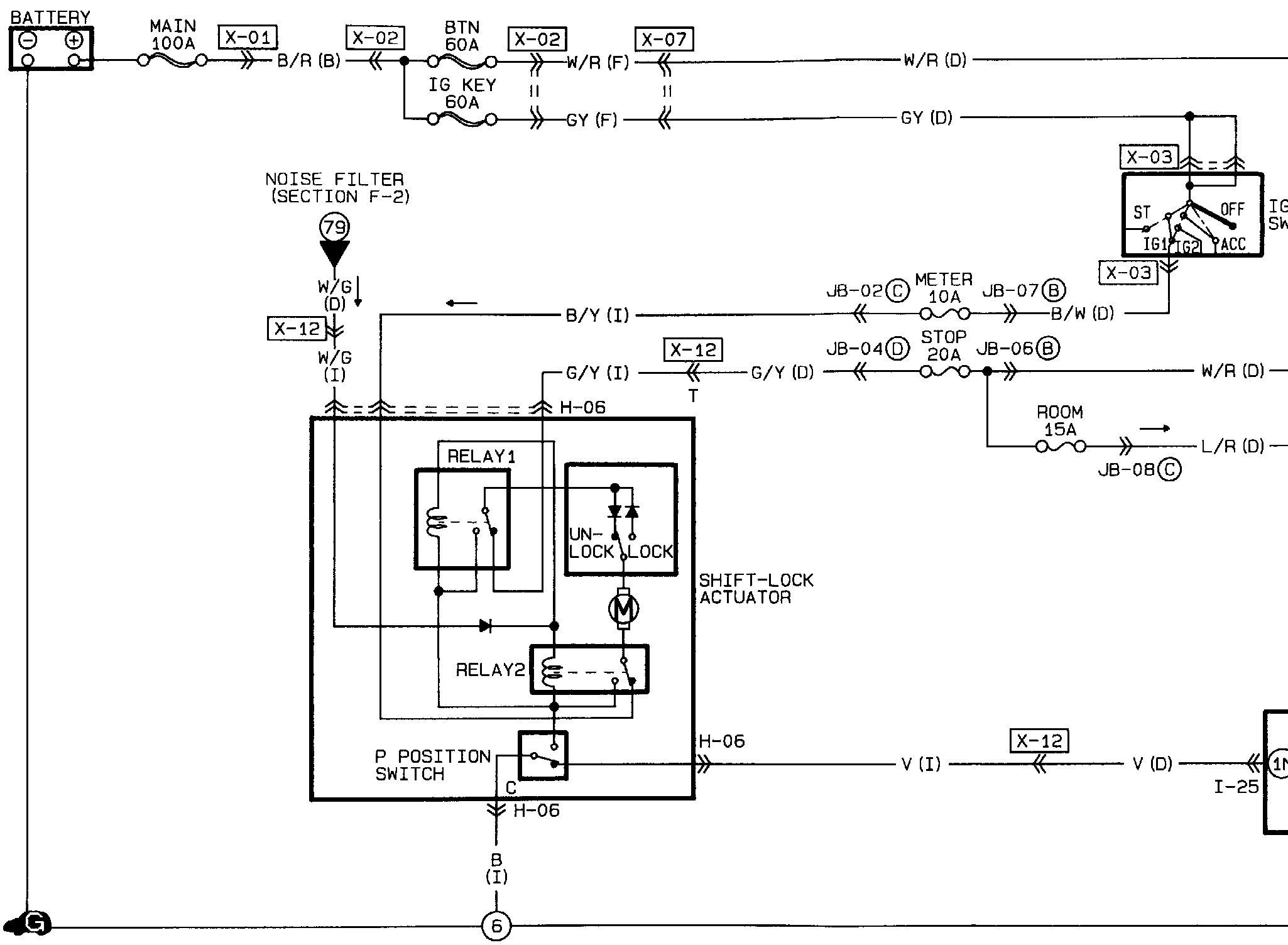

Keyless Entry

�<HShift-Lock System, Key Interlock System:
