Fluid - A/T: Testing and Inspection

ATF Inspection

Level




1. Park the vehicle on level ground.

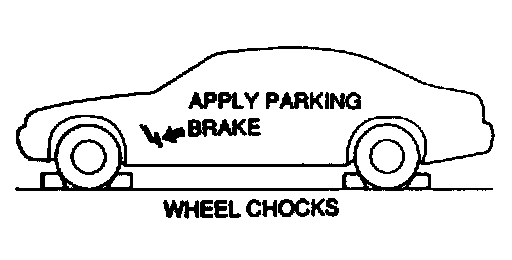

2. Apply the parking brake and securely position wheel chocks to prevent the vehicle from rolling.
3. Warm up the engine until the ATF temperature reaches 60 - 70°C {140 - 158°F).

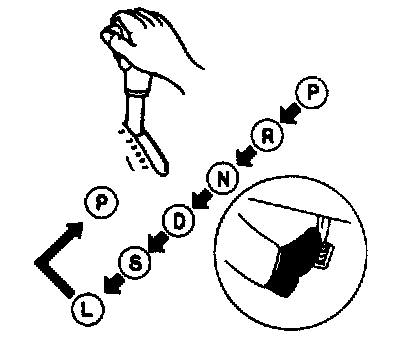

4. While depressing the brake pedal, shift the selector lever to each position/range (P-L).Leave it a few seconds in each position/range.
5. Shift back to P position.





NOTE: Use the cool (20°C) range only as a reference.

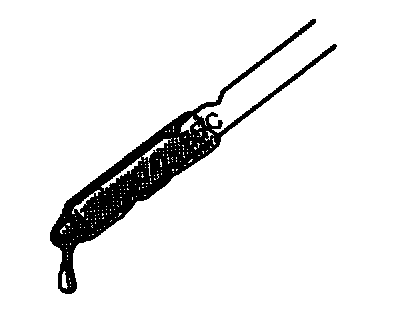

6. Ensure that the ATF level is in the hot (65°C) range. Add ATF to specification, if necessary.

ATF Type: Dexron (R) II or M-III
Capacity: 8.6 liters {9.1 Us qt, 7.6 Imp qt}

Condition

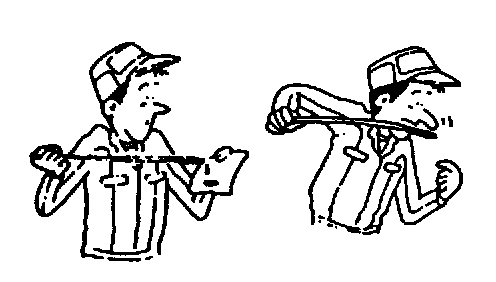

Determine whether the transmission should be disassembled by doing the following.
1. Is the ATF muddy or varnished?
2. Does the ATF smell strange or unusual?.

Fluid leakage

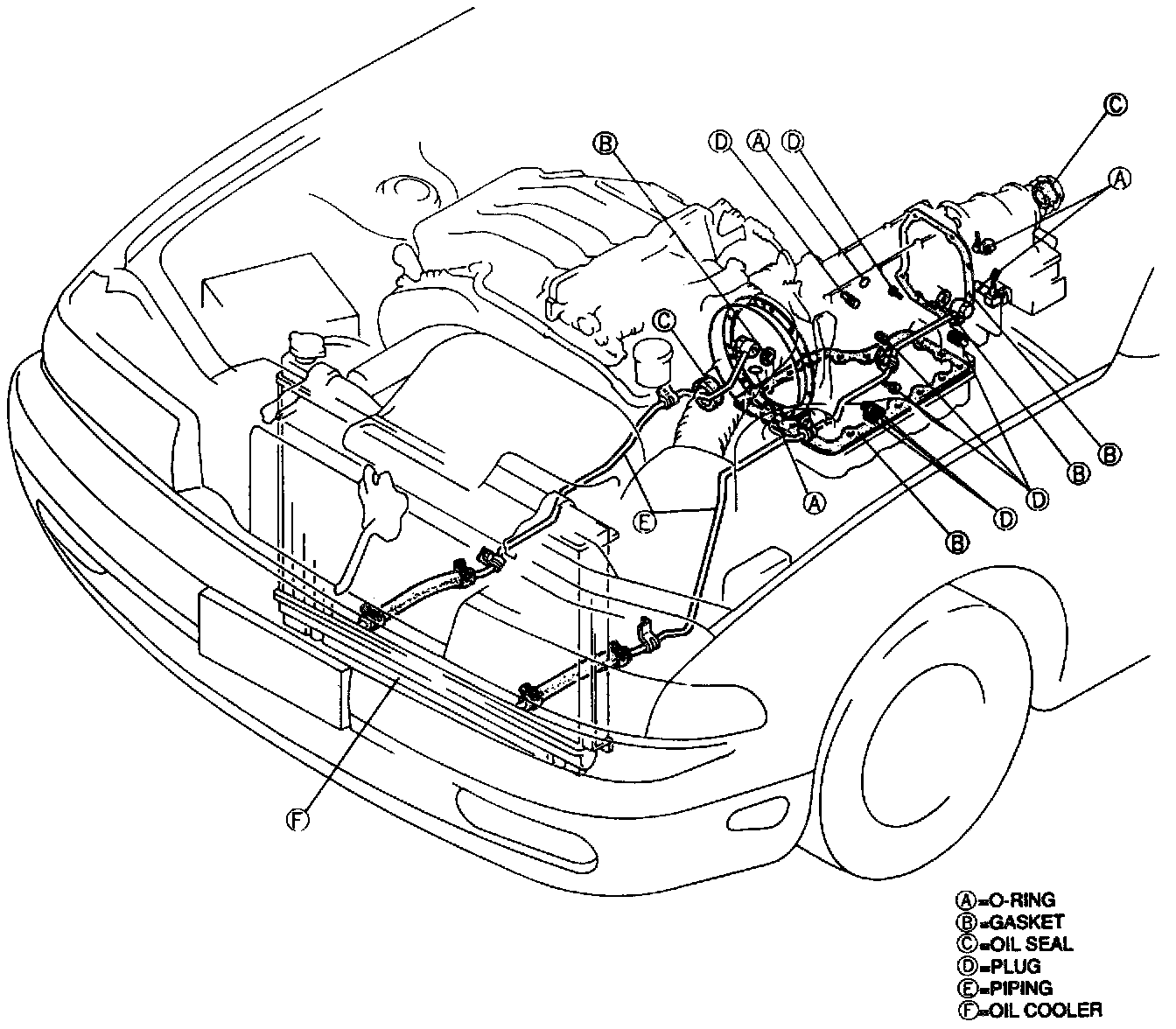

Check for ATF leakage at the points shown below and repair or replace as necessary.
