Input/ Turbine Speed Sensor

Replacement
1. Remove the transmission assembly.

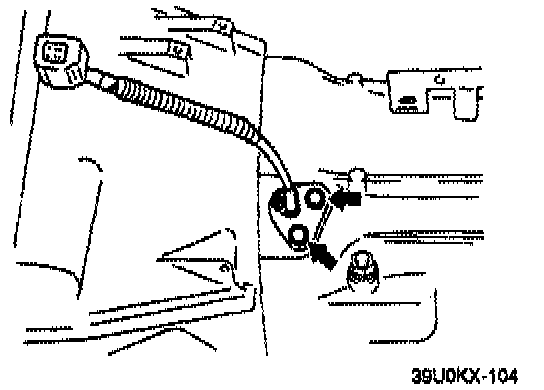

2. Remove the Input/ Turbine Speed Sensor from the transmission case.
3. Apply Automatic Transmission Fluid (ATF) to a new 0-ring and install it on the Input/ Turbine Speed Sensor.
4. Install the new Input/ Turbine Speed Sensor and new gasket.
5. Install new bolts and tighten.

Tightening Torque: 5.0-6.8 Nm (44-6O in.lb.)

6. Install the transmission assembly.
