Output Speed Sensor

OUTPUT SPEED SENSOR
Inspection
1. Disconnect the negative battery cable.

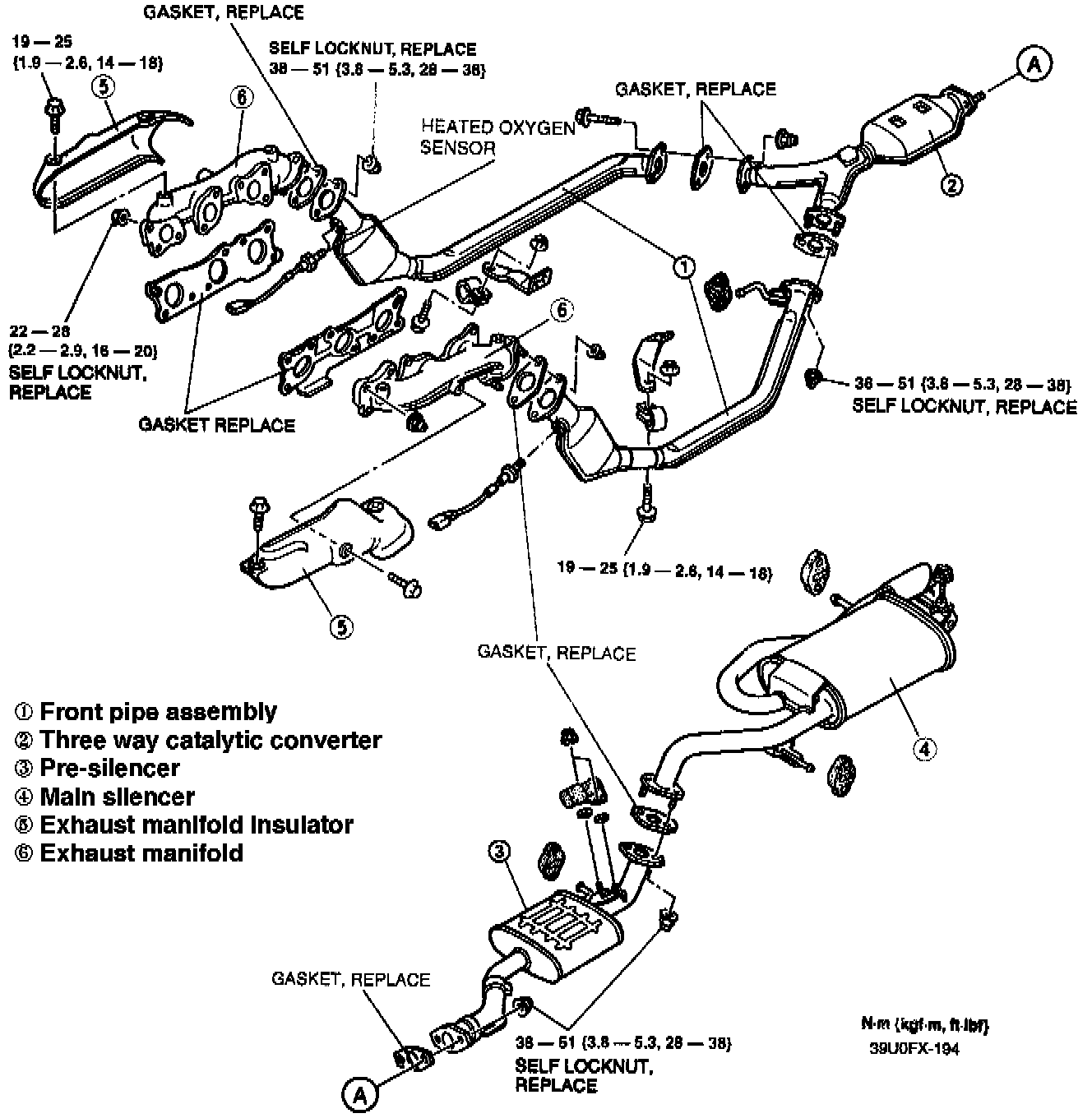

2. Remove the (left side) front exhaust pipe; use image as reference.





3. Disconnect the Output Speed Sensor Connector.

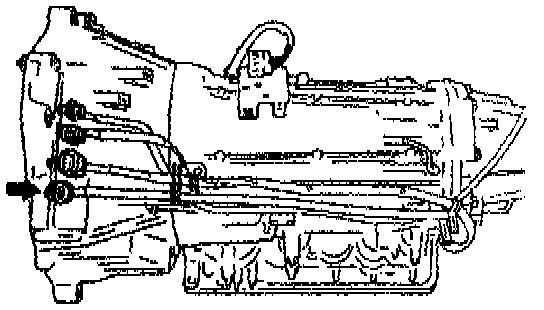

4. Measure the resistance between the terminals of the Output Speed Sensor.
5. If not correct, replace the Output Speed Sensor.
6. Connect the Output Speed Sensor connector.
7. Install the front exhaust pipe.
8. Connect the negative battery cable.
