Home >> Mazda >> 1995 >> MX-3 L4-1598cc 1.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Description and Operation >> Engine System >> Component Overview >> Part 2 of 3

Part 2 of 3

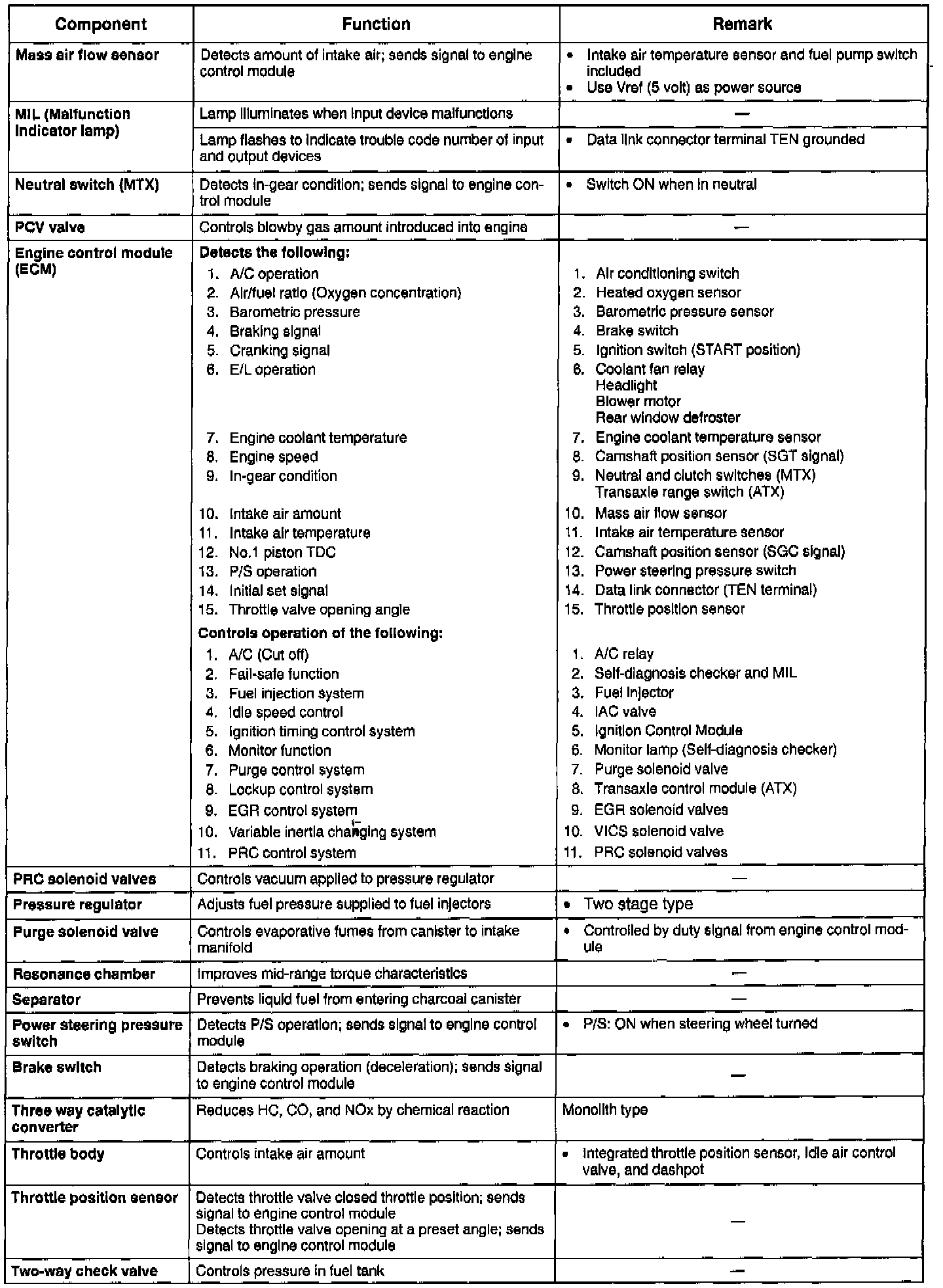

Mass Airflow Sensor - Through - Two-way Check Valve:
