Audio System - Specifications

Bulletin No.: 007/95
Issued: 4/5/95
Revised: 6/30/95

Category
T

Applicable Model/s
1995 MX-3

Subject

AUDIO SPECIFICATIONS

The "Description" portion of this bulletin is revised. Changes are highlighted by bold print Replace the original bulletin with this revised copy.

APPLICABLE MODELS/VINS

1995 MX-3 vehicles within the following VIN range: JM1EC43**S0408190 through JM1EC43**S0409413

DESCRIPTION





The 626 audio unit has been installed in the above listed 1995 MX-3 vehicles at production. If the audio unit requires replacement, it must be exchanged with a 626 model unit. (Audio ID Code: 3266) The table illustrates the difference between the two units.

REPLACEMENT PROCEDURE

1. Confirm ID Code on problem unit prior to placing order an order for the exchange unit with the Service Center.

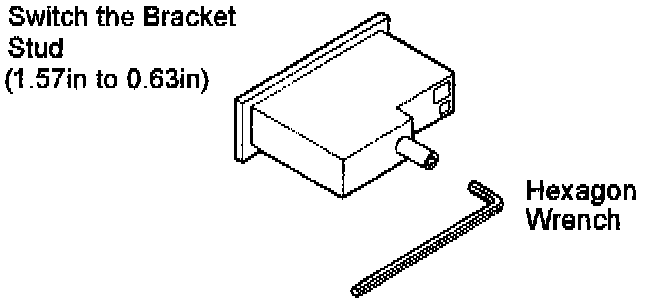

2. If the ID Code is 3266, switch the rear bracket stud (problem unit 0.63 in with the exchange unit 1.57 in). Use a hexagon wrench to switch studs.
