Manifold Pressure/Vacuum Sensor: Locations

Manifold Absolute Pressure Sensor




Located near the firewall on the right side of the engine compartment.

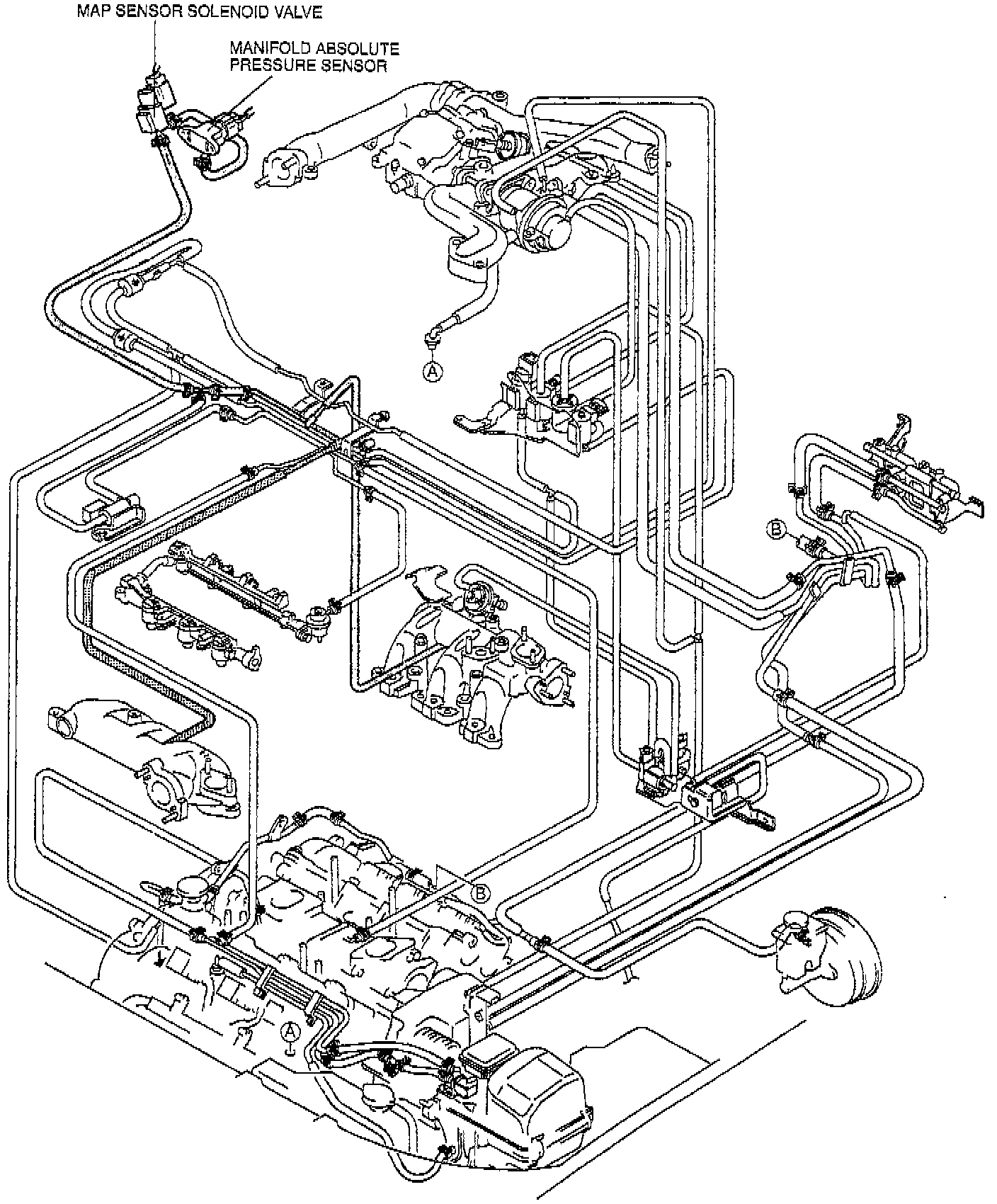

Refer to item No.5 in the figure.

Manifold Absolute Pressure Sensor Solenoid Valve




Located on the right side of the engine compartment, near the Manifold Absolute Pressure Sensor.
