Ignition Coil: Service and Repair

IGNITION COIL
Removal/Installation
1. Disconnect the negative battery cable.

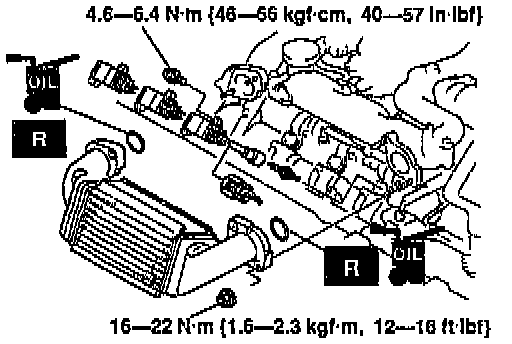

2. LH: Remove the charge air cooler.
RH: Remove the solenoid bracket assembly.
3. Disconnect the ignition coil 4-pin connector.

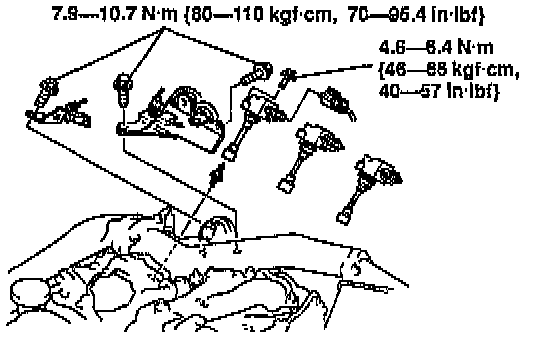

4. Remove the ignition coil(s).
5. Install in the reverse order of removal.
