Air Bag Control Module: Service and Repair

SAS-Unit
Removal/Installation





1. Carry out the "Before Servicing" procedure under Air Bag, Testing and Inspection, Service Precautions.
2. Remove the dashboard.
3. Remove the cooling unit and the heater unit.

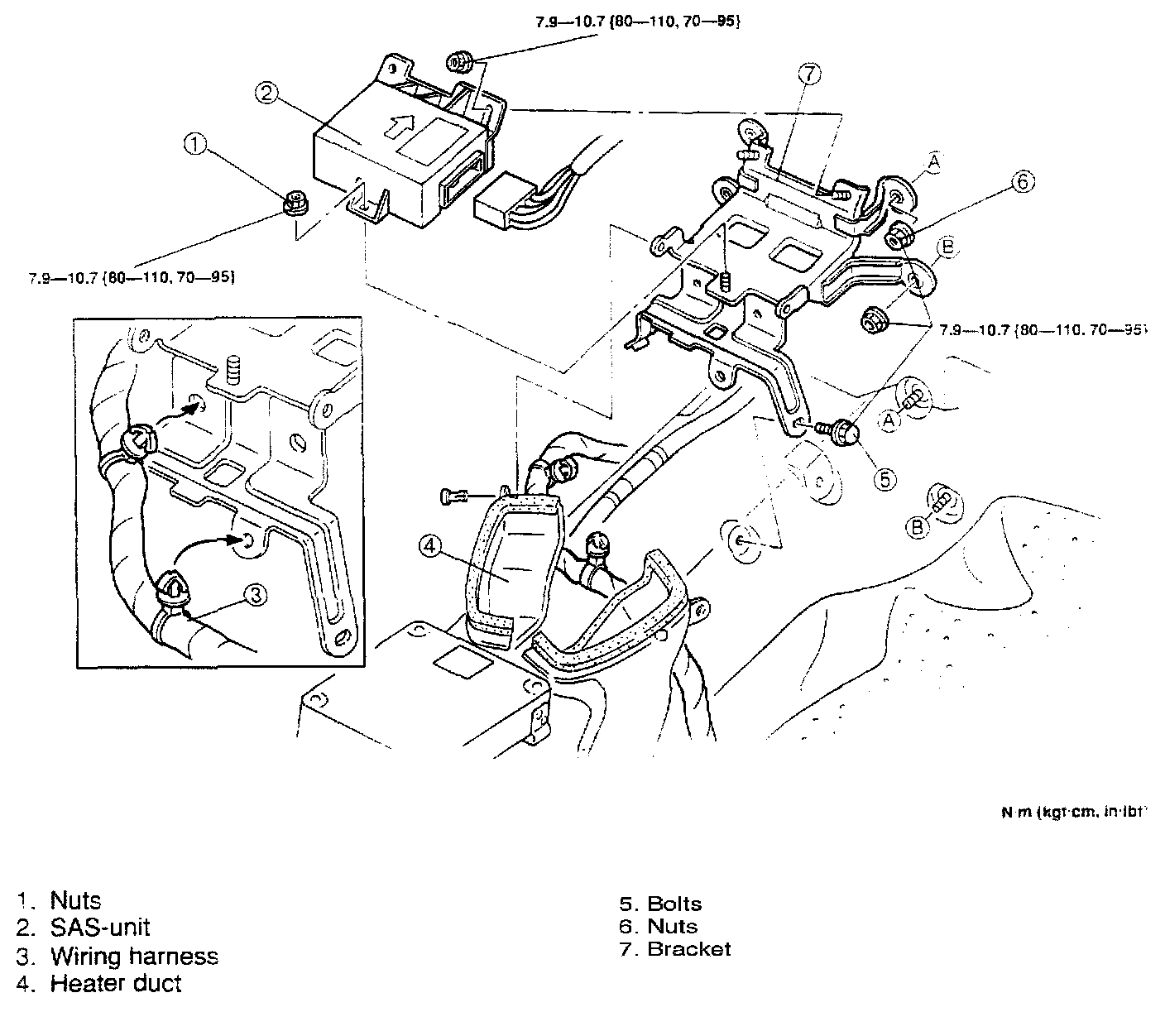

4. Remove in the order shown in the image.
5. Install in the reverse order of removal.
6. Follow the troubleshooting flowchart to verify that the air bag system is operating normally.

Installation Note:





SAS-unit and bracket
1. If the bracket mounting area is damaged, repair the area to its original shape.

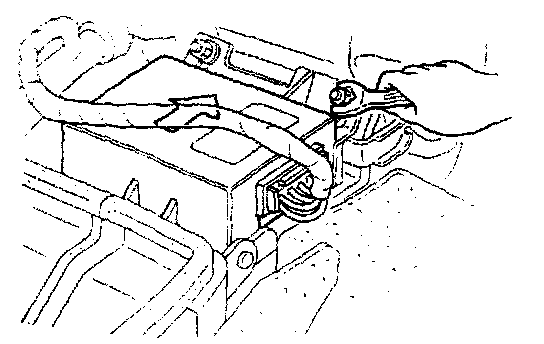

2. Position the SAS-unit and bracket with the arrow on the SAS-unit facing toward the front of vehicle. Install them and tighten the bolts and nuts to the specified torque.
