Home >> Mazda >> 1995 >> Millenia V6-2496cc 2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Interior Lighting Module

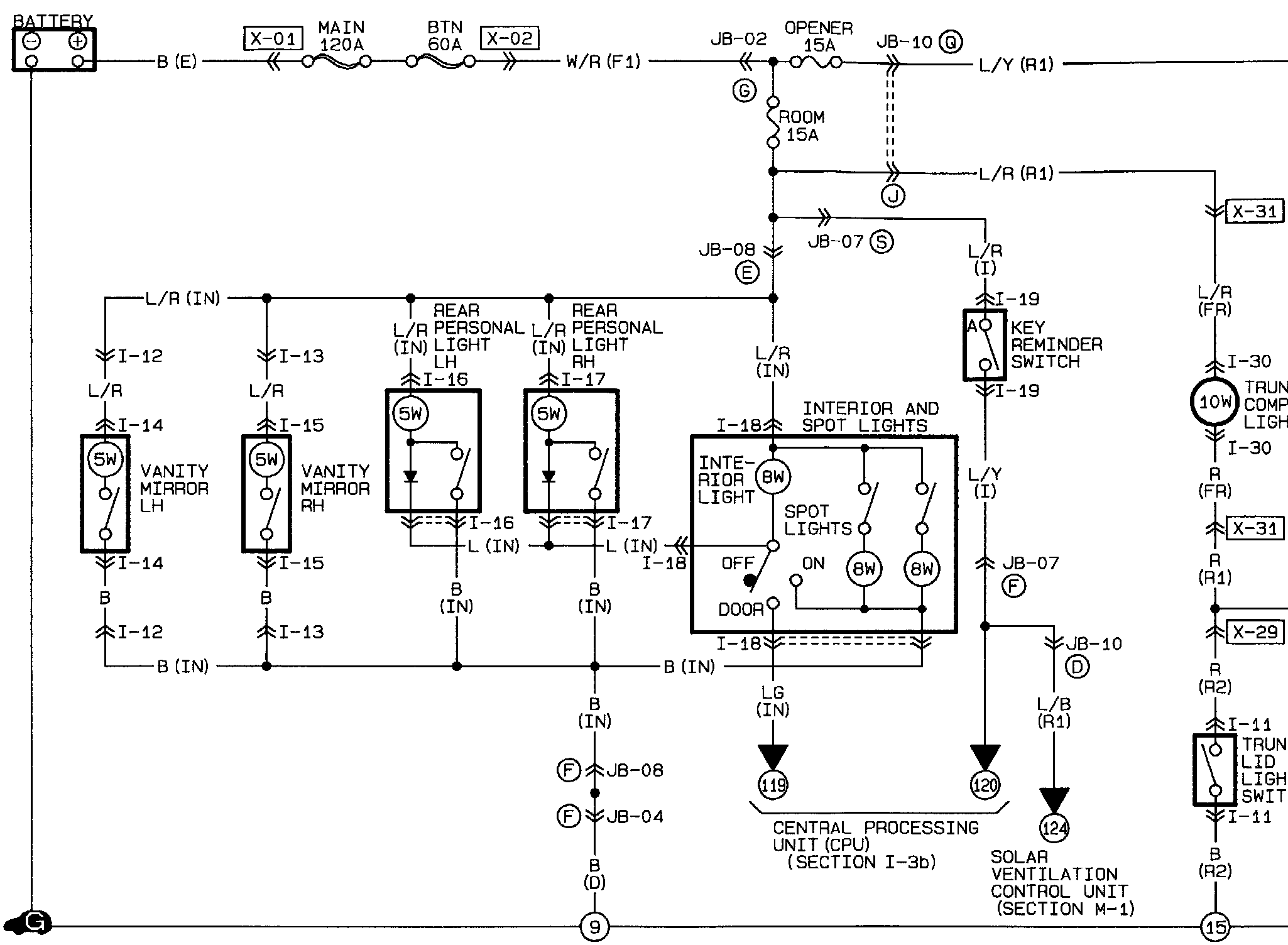

Interior Lighting Module

�k�Vanity Mirror, Interior Light, Courtesy Lights, Rear Personal Lights, Spot Lights, Trunk Compartment Light:
