Component Tests and General Diagnostics

Inspection
Resistance

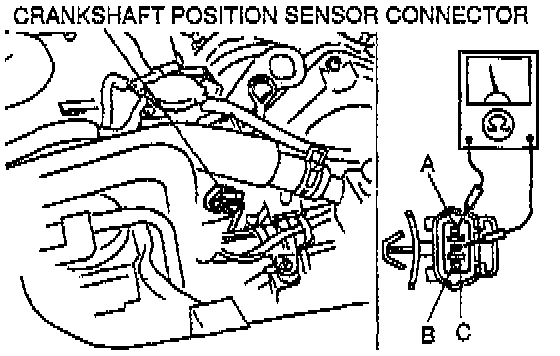

1. Disconnect the crankshaft position sensor connector.
2. Measure the resistance between terminals A and B by using an ohmmeter.

Specification: 520-580 ohms (20°C (68°F))

3. If not as specified, replace the crankshaft position sensor.




Air gap
1. Measure the air gap between crankshaft pulley and crankshaft position sensor by using a feeler gauge.

Specification: 1.0-2.0 mm (0.040-0.080 in)

2. If not as specified, replace the crankshaft pulley or the crankshaft position sensor.
