System Inspection

1. Turn the ignition switch to START and check for fuel pump relay operating sound.

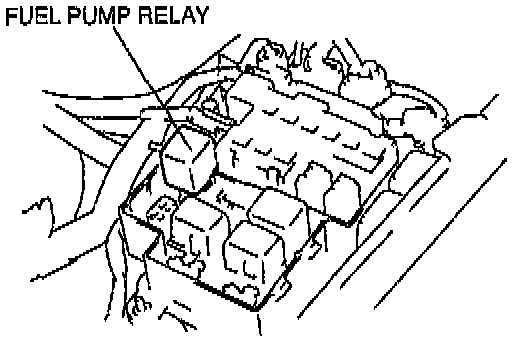

2. If not sound was heard, check the fuel pump relay.
3. If the fuel pump relay is normal, check voltage at following terminals.
- ECM terminal 1C (Ignition switch START signal)
- ECM terminal 1U (Fuel pump relay)
