Output Devices
[Output Device]

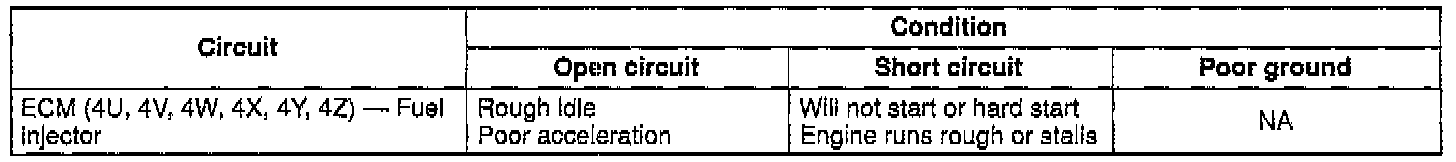

Fuel Injector

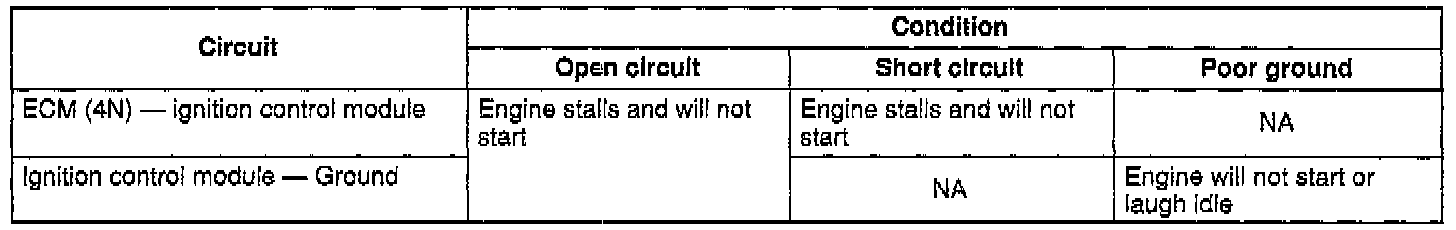

IGT Signal (Ignition Control Module)

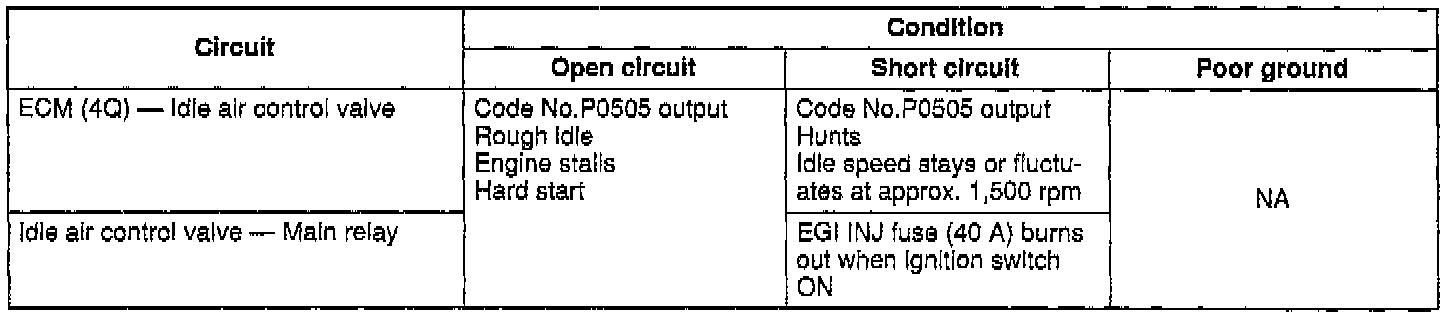

Idle Air Control Valve [IN BAC Valve]

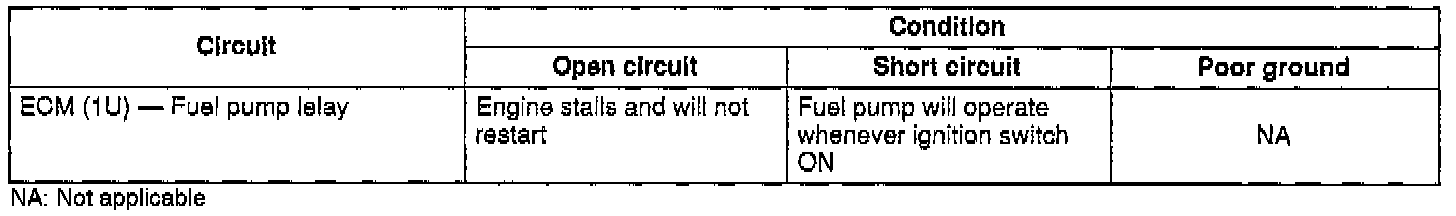

Fuel Pump Relay

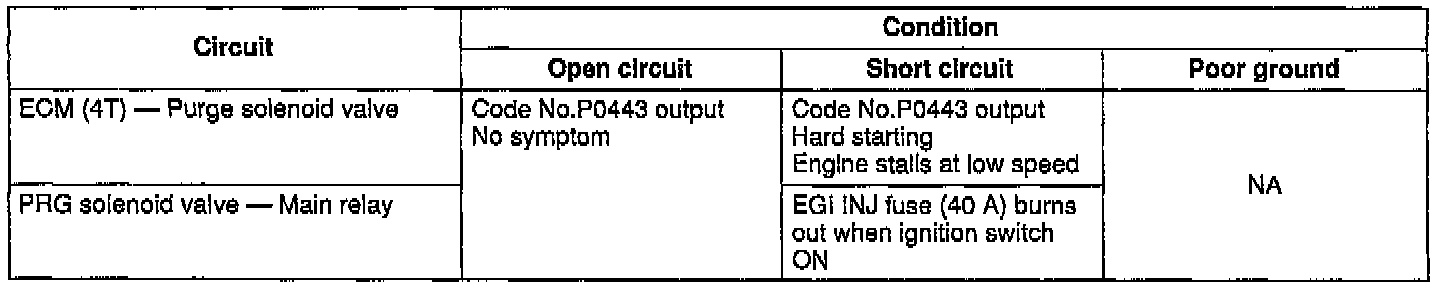

PRG Solenoid Valve

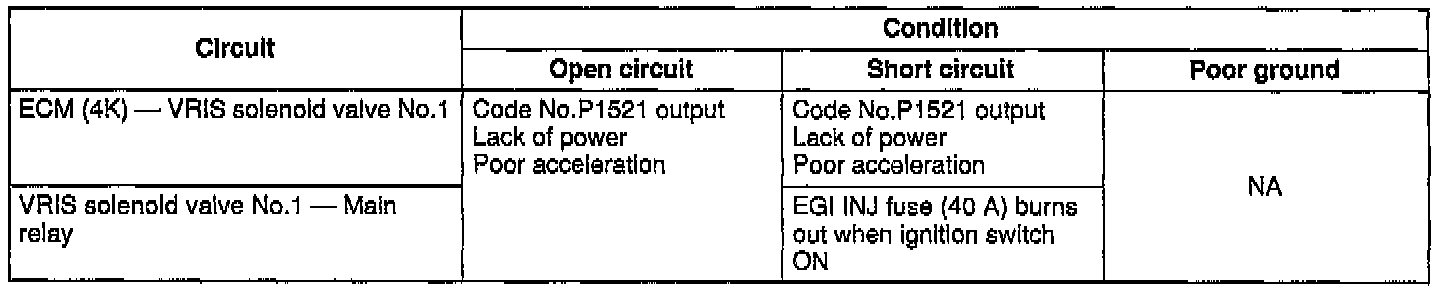

VRIS Solenoid Valve No.1

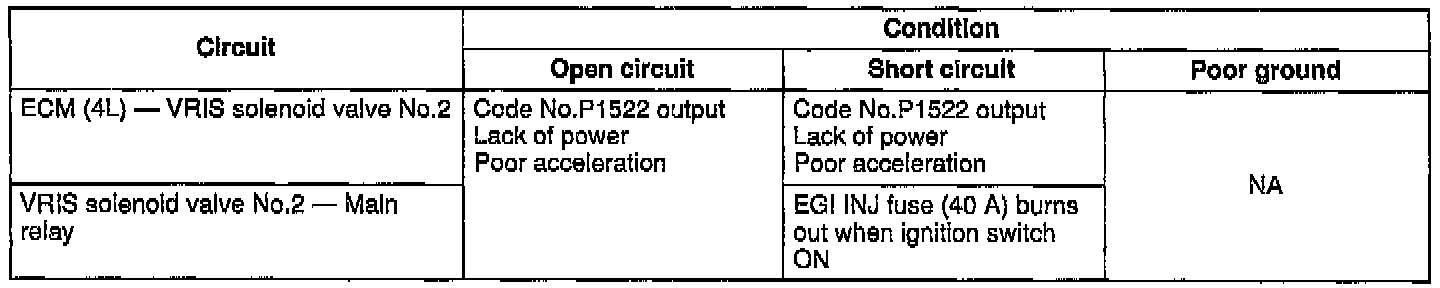

VRIS Solenoid Valve No.2

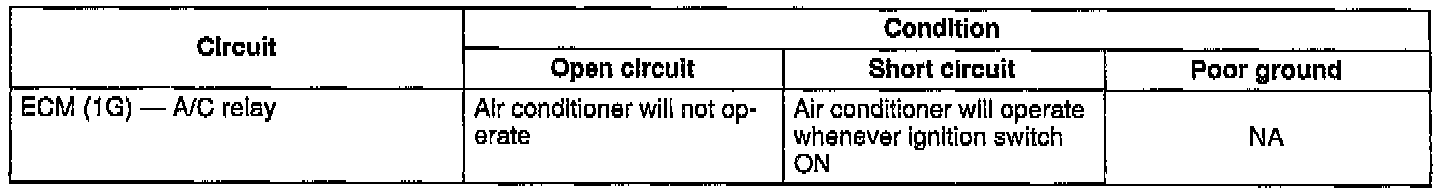

A/C Signal (A/C Relay)

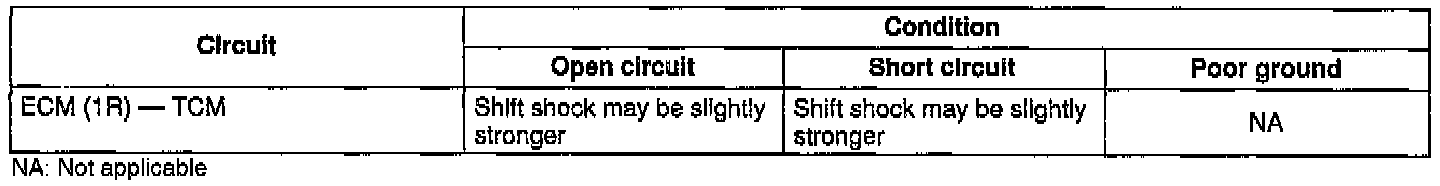

Torque Reduced Signal (TCM)

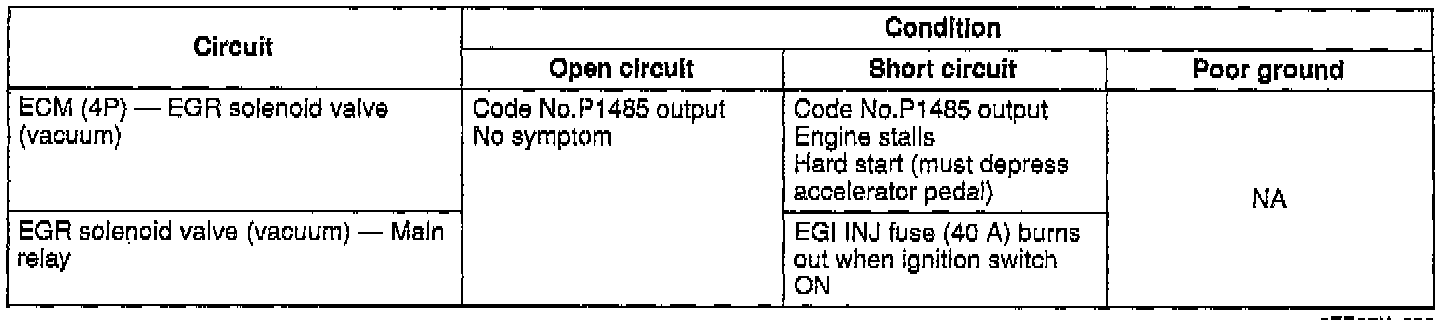

EGR Solenoid Valve (Vacuum)

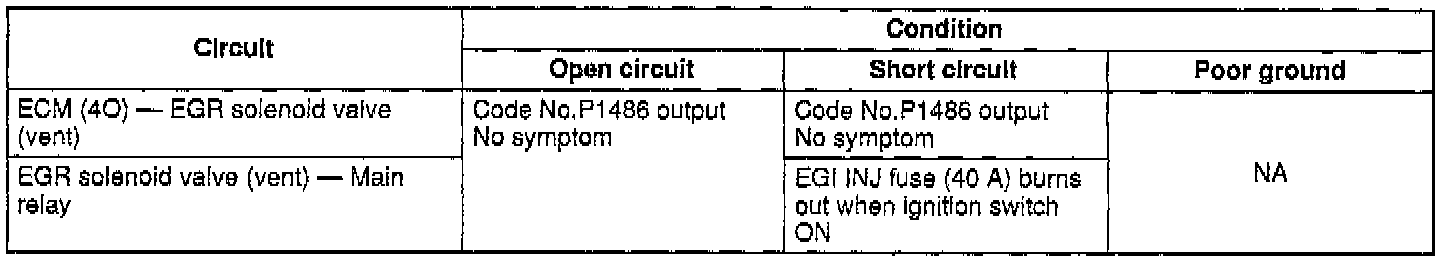

EGR Solenoid Valve (Vent)

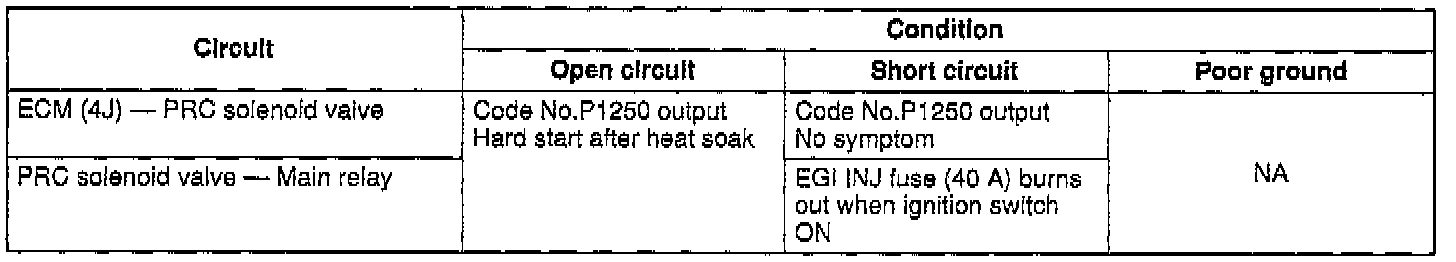

PRC Solenoid Valve

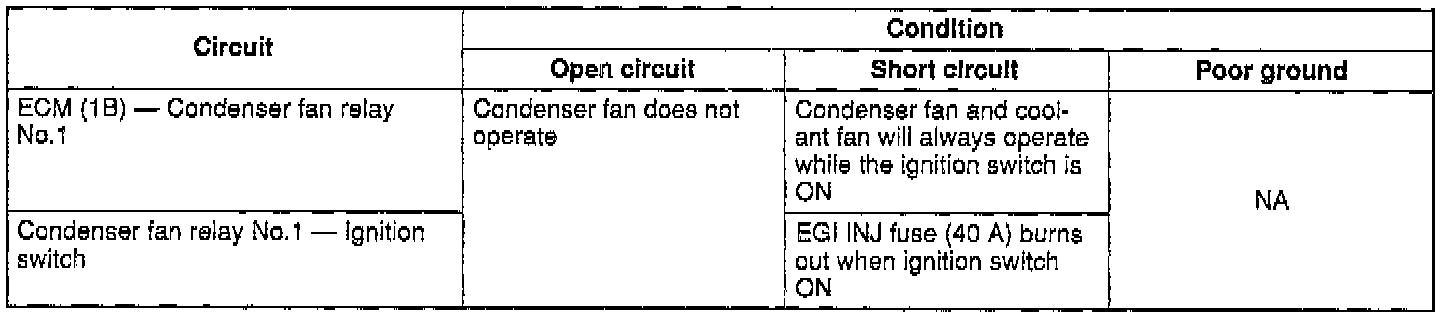

Condenser Fan Relay No.1

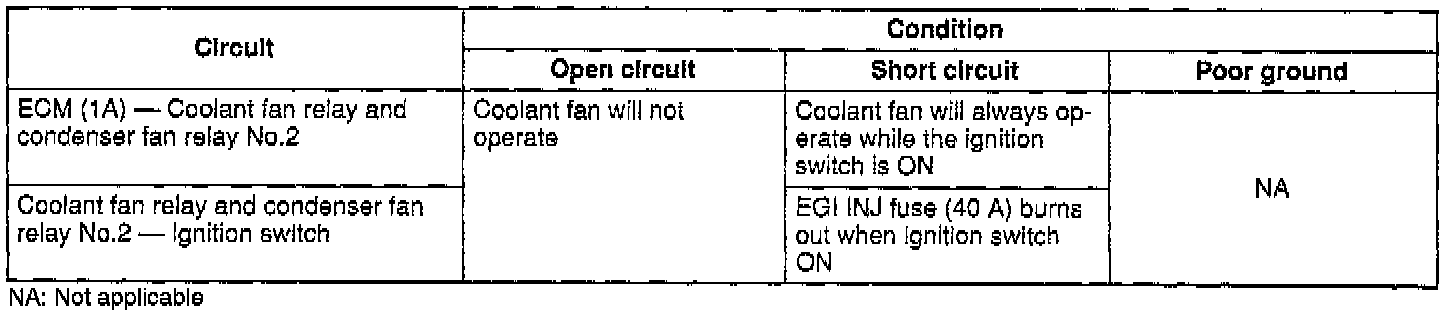

Coolant Fan Relay and Condenser Fan Relay No.2

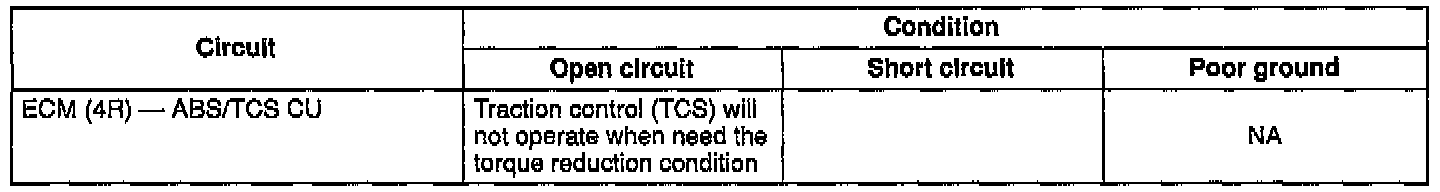

Torque Reduction Inhibit Signal (ABS/TCS Control Unit)

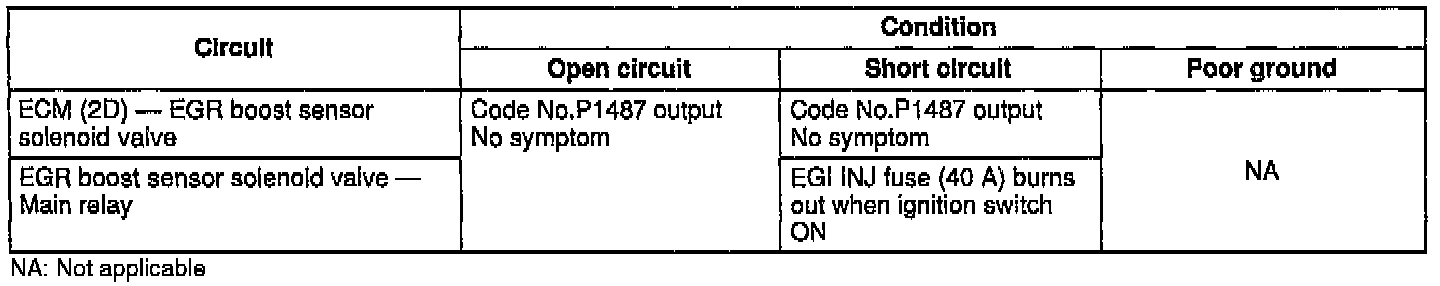

EGR Boost Sensor Solenoid Valve
