Wire Type

A/C Switch Inspection (Wire Type)

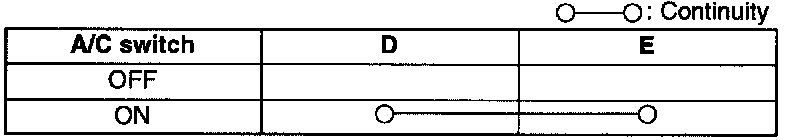

1. Check for continuity between the terminals of the A/C switch.
2. Turn the A/C switch on.

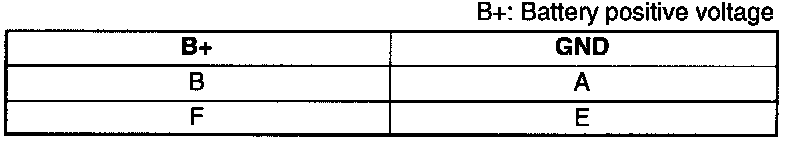

3. Connect battery positive voltage and ground to the terminals of the A/C switch.
4. Verify that the light-emitting diode illuminates.
5. If not as specified, replace the A/C switch.
