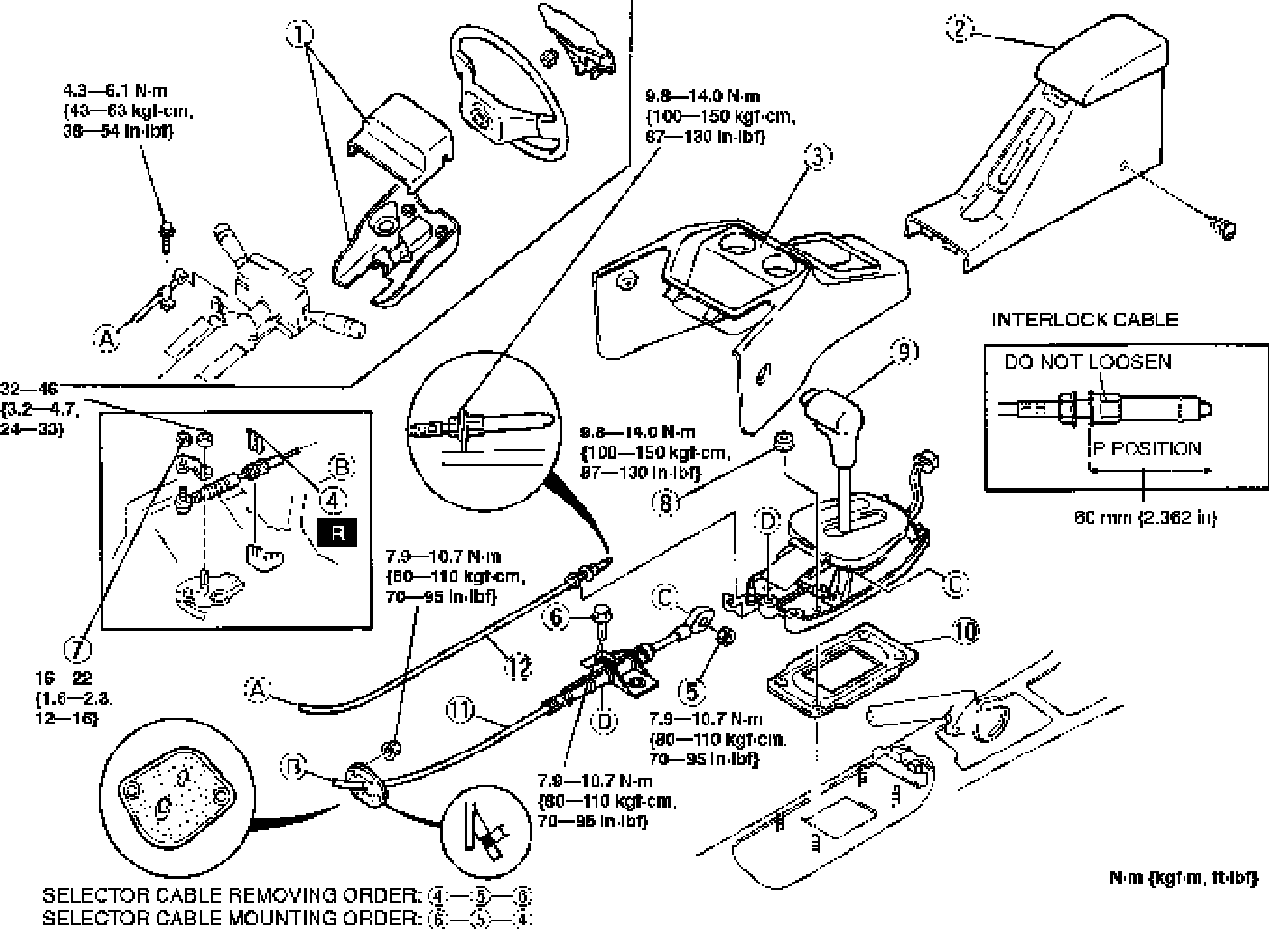

Shift Cable: Service and Repair

1. Steering column cover
2. Rear console
3. Front console
4. Clip
5. Nut
6. Bolt
7. Nut
8. Nut
9. Selector Lever
10. Insulator
11. Selector cable
12. Interlock cable

SELECTOR LEVER REMOVAL/INSTALLATION
Removal/Installation
1. Disconnect the negative battery cable.
2. Remove in the order shown in the figure.
3. Install in the reverse order of removal, referring to Installation Note.
4. Connect the negative battery cable.
5. Verify correct operation of the shift-lock system.





Interlock cable
1. Shift the selector lever from P position to 1 range.

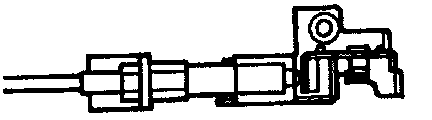

2. Install the interlock cable so that the tip touches the operating lever.

Caution:

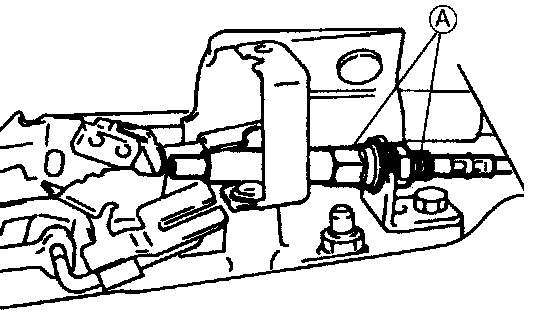

- Do not damage the outer sleeve (A) when pulling or turning the interlock cable.





3. Install the interlock cable into the bracket groove, then tighten the nut.
Tightening torque: 9.9-14.0 N.m { 100-150 kgf.cm , 87-130 in.lbf}





Nut
1. Shift the selector lever and manual shaft to P position.

Caution:

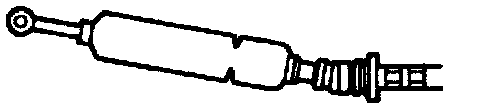

Bending the selector cable in the manner shown in the figure will damage the cable and cause it to become loose during shifting. When handling and installing the selector cable, hold it straight.

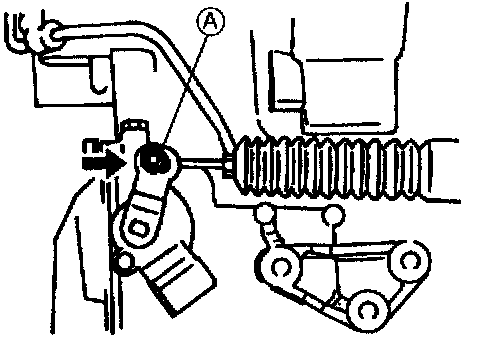

2. After verifying that the selector cable boot is not twisted, install the selector cable to the selector lever, then tighten nut (A).

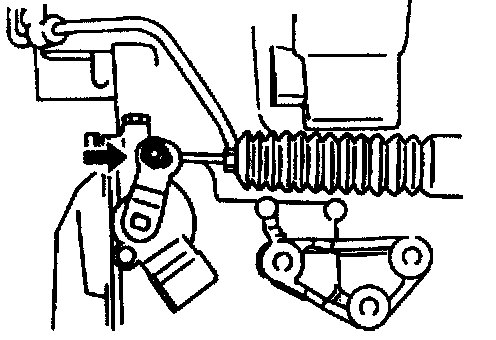

3. Push the selector cable in the direction of the arrow until it doesn't move any further.

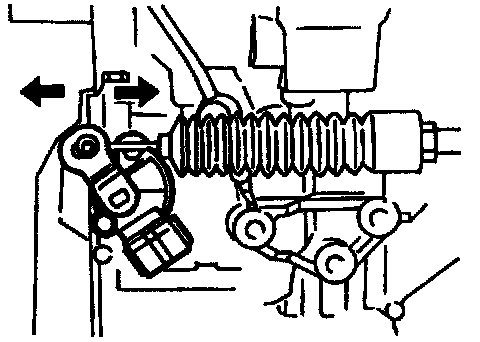

4. Position the selector cable so that there is no load in the direction of the arrows, and tighten the nut.
Tightening torque: 16-22 N.m { 1.6-2.3 kgf.m,12-16 ft.lbf }
5. Shift the selector lever from P position to 1 range, and make sure that there is no interference from other components in that area.





Clip
Install a new clip flush to the selector cable bracket.
