Transmission Speed Sensor: Service and Repair
Replacement1. Disconnect the negative battery cable.
2. Remove the battery, air cleaner assembly, and battery carrier.

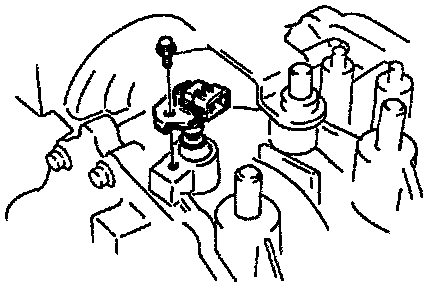

3. Disconnect the input/turbine speed sensor connector.
4. Remove the input/turbine speed sensor.
5. Apply ATF to a new 0-ring and install it on a new input/turbine speed sensor.
6. Install the input/turbine speed sensor.
Tightening torque: 7.9-10.7 N-m (70-95 in-lb)
7. Connect the input/turbine speed sensor connector.
8. Install the battery carrier, air cleaner assembly, and battery.
9. Connect the negative battery cable.
