Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

Inspection
1. Disconnect the mass air flow sensor connector.

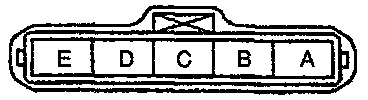

2. Measure the resistance between terminals C and D by using an ohmmeter.

Specification: 2.21-2.69 k Ohms [20 °C {68 °F}]

3. If not as specified, replace the mass air flow sensor.
