Daytime Running Lamp Control Unit
Daytime Running Lamp Control Unit

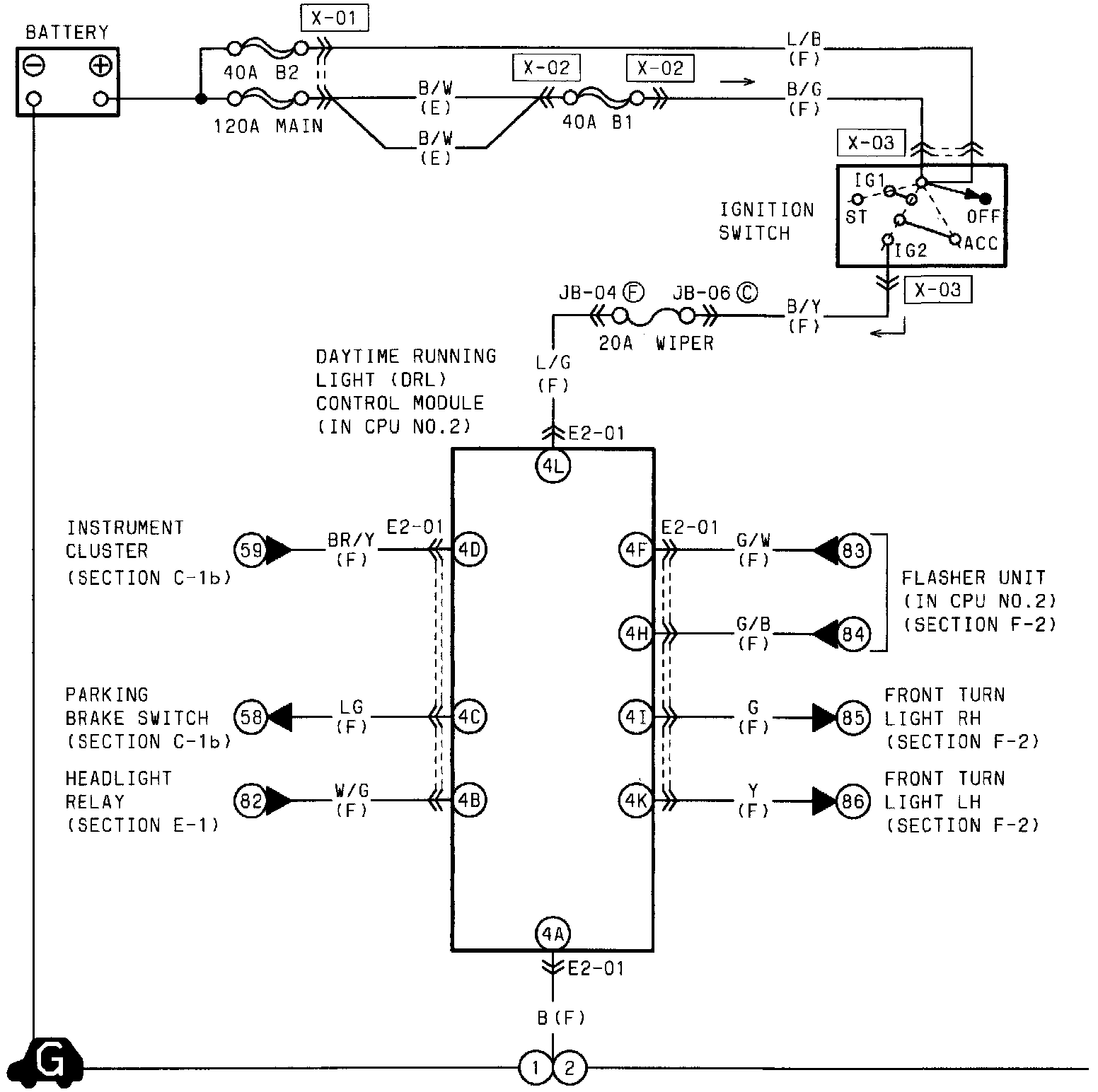

Canada Daytime Running Light (DRL) Control System:
