Intermediate Housing

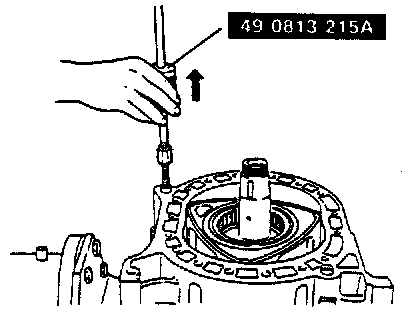

Fig. 9, Removing Tubular Dowel:

1. Holding the intermediate housing down by hand, pull the tubular dowel off the intermediate housing using Puller tool No. 49 0813 215A or equivalent, Fig. 9.
2. Lift the intermediate housing off the shaft, being careful not to damage the shaft. The intermediate housing should be removed by sliding it beyond the rear rotor journal on the eccentric shaft while holding the intermediate housing up and at the same time pushing up the eccentric shaft.
