Safing Sensor: Service and Repair

S-SENSOR, REMOVAL/INSTALLATION

1. Deactivate the audio antitheft system, if installed.
2. Disconnect the negative battery cable.





3. Disconnect the diagnostic module connector and connect the SST to it as shown in the figure.
4. Remove the cooling unit.
5. Remove the heater unit.

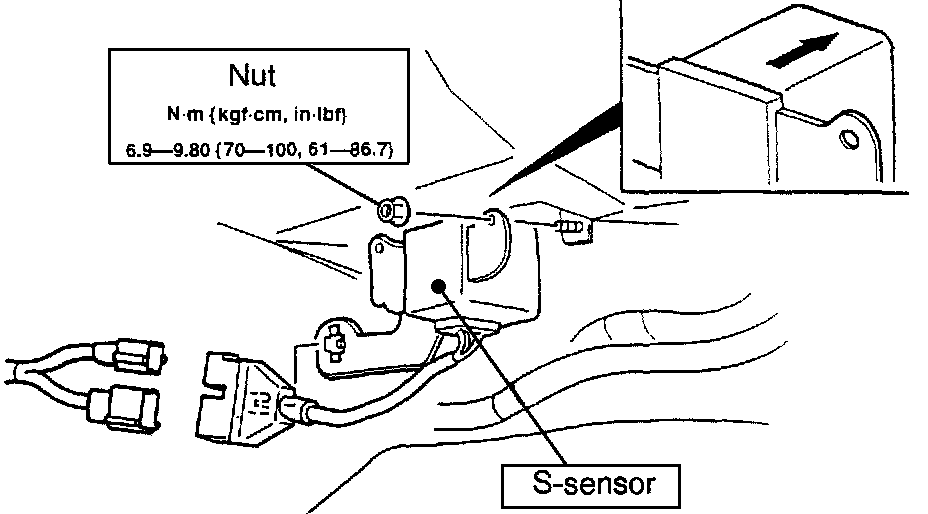

6. Remove in the order shown in the figure.
7. Install in the reverse order of removal, referring to Installation note.

INSTALLATION NOTE:
1. If the S-sensor mounting area is damaged, repair the area to its original shape before reinstalling the sensor.

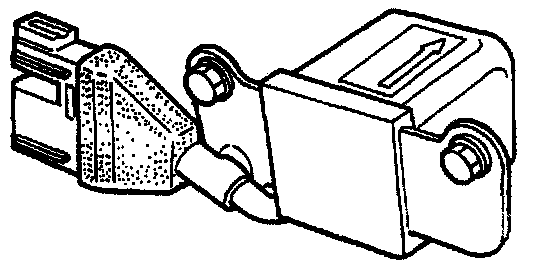

2. Point the arrow on the S-sensor toward the front of tn vehicle.
