Quick Diagnosis Chart II-1

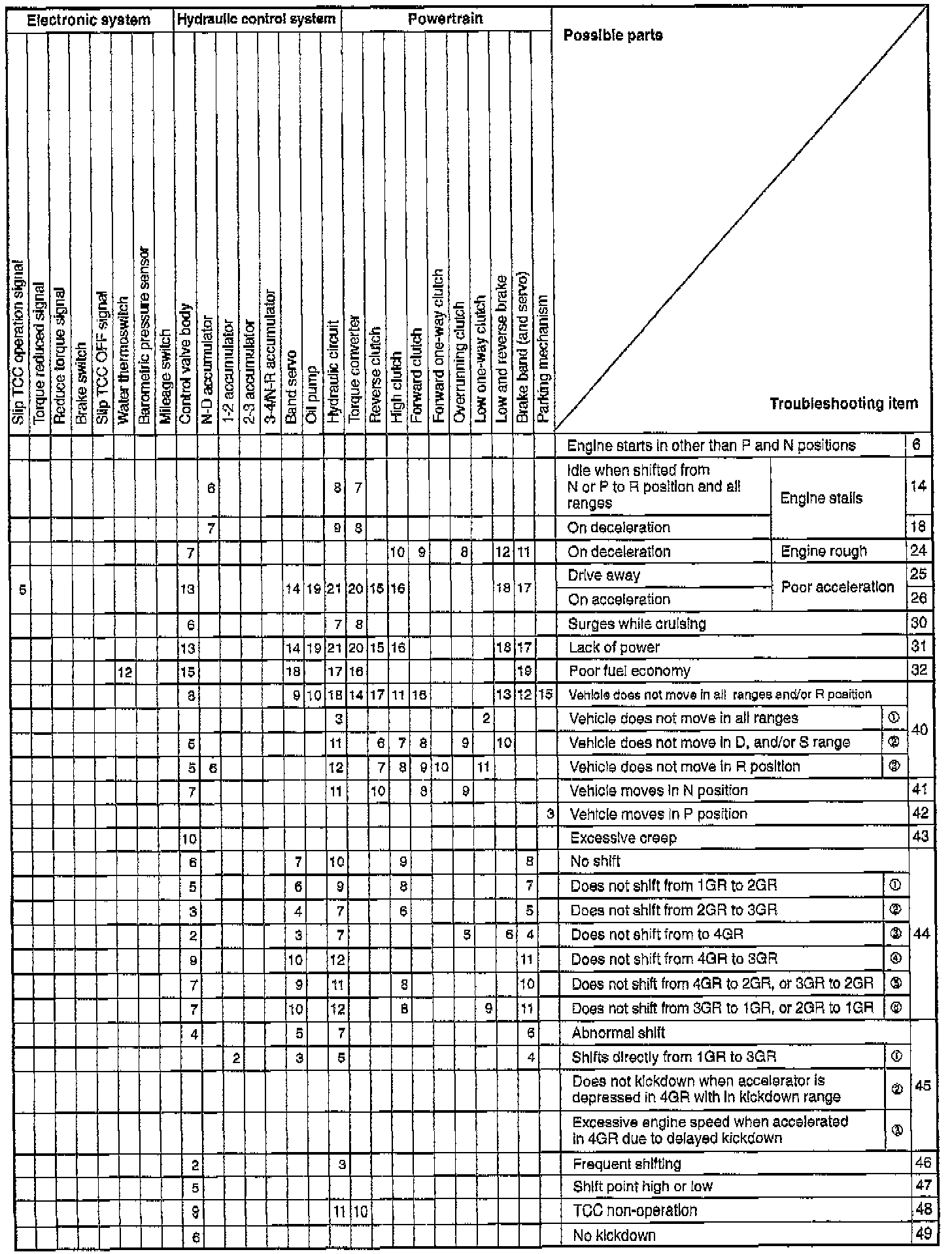

Troubleshooting Symptoms No.6 Through No.49 (Part 1 Of 2):

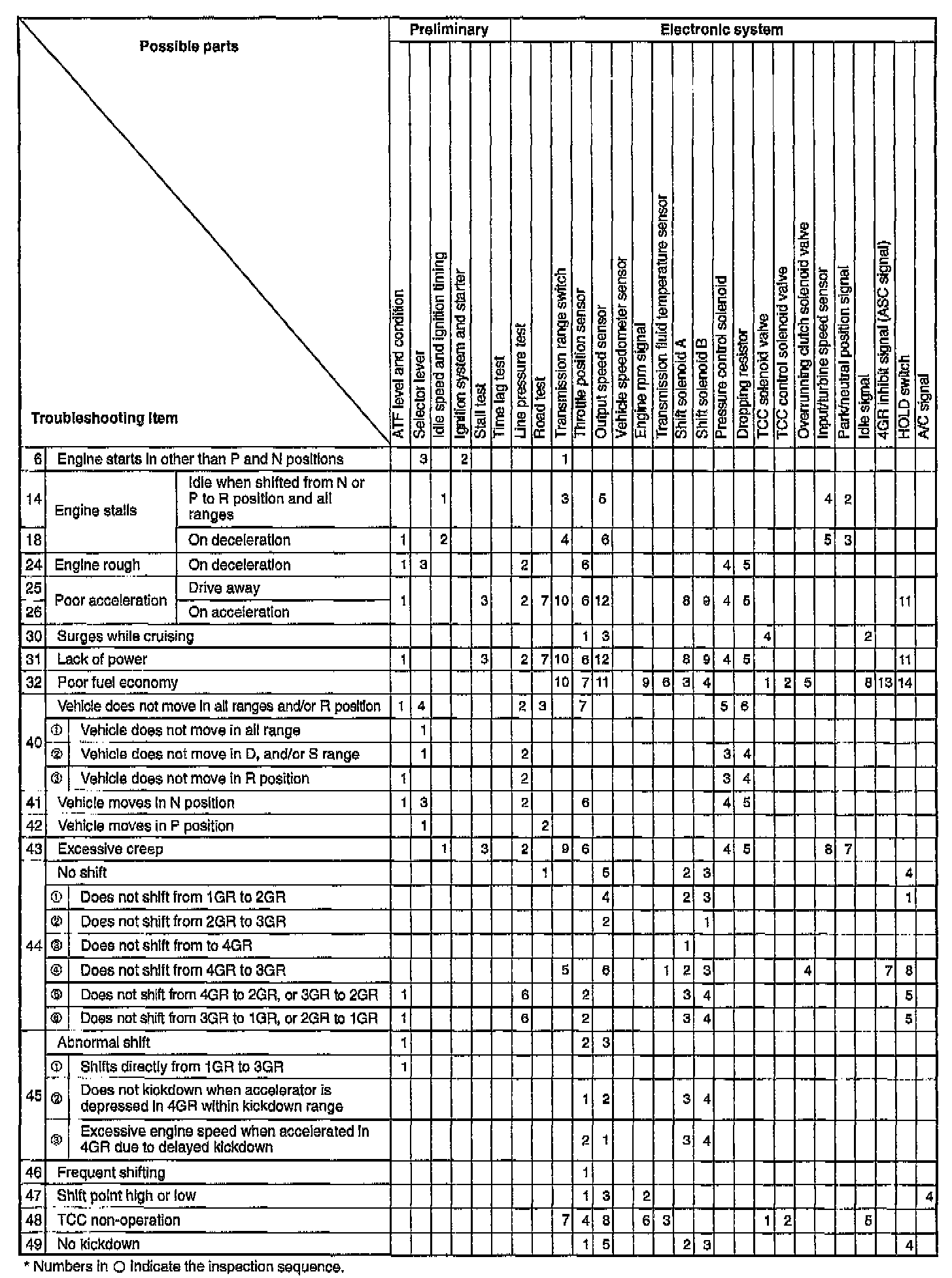

Troubleshooting Symptoms No.6 Through No.49 (Part 2 Of 2):
