With Automatic Transaxle

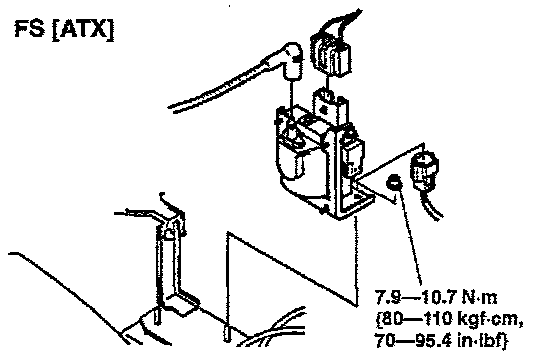

Ignition Coil FS (ATX):

IGNITION COIL REMOVAL / INSTALLATION
1. Disconnect the negative battery cable.
2. Disconnect the ignition coil connector and high-tension lead from the ignition coil.
3. Disconnect the condenser connector from the condenser.
4. Remove the ignition coil.
5. Install in the reverse order of removal.
