Electronic Brake Control Module: Testing and Inspection

Ensure terminal voltage, continuity or resistance is as specified for conditions indicated, Fig. 113 If not, perform inspections as indicated.

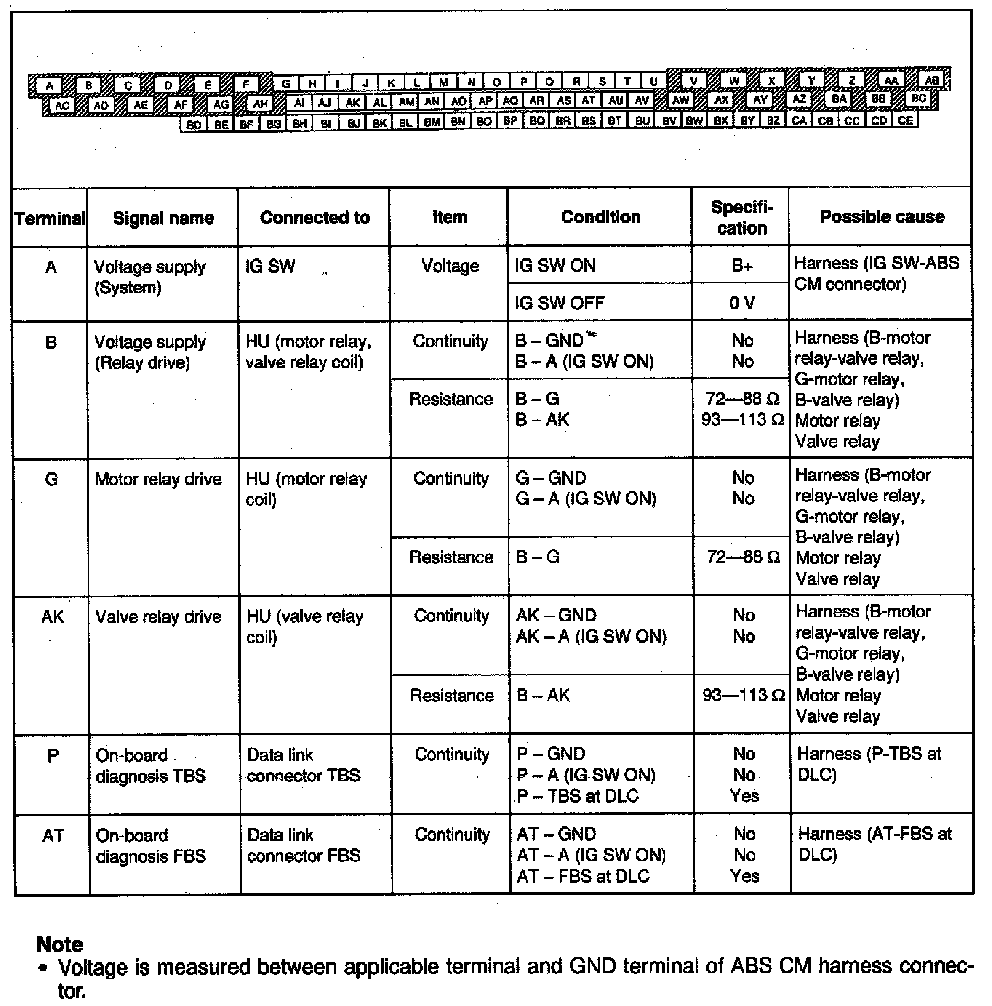

Fig. 113 ABS Control Module Inspection (Part 1 Of 3):

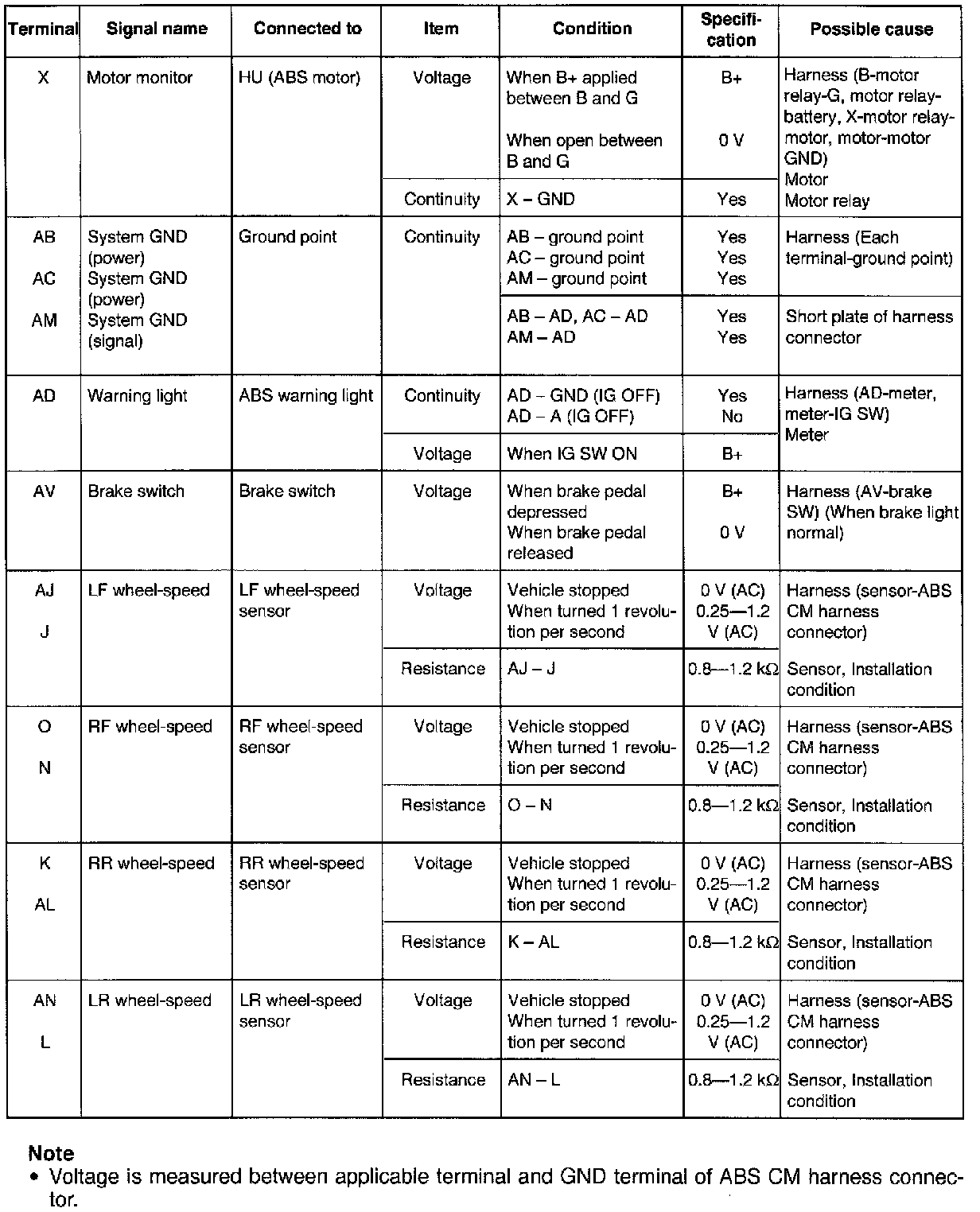

Fig. 113 ABS Control Module Inspection (Part 2 Of 3):

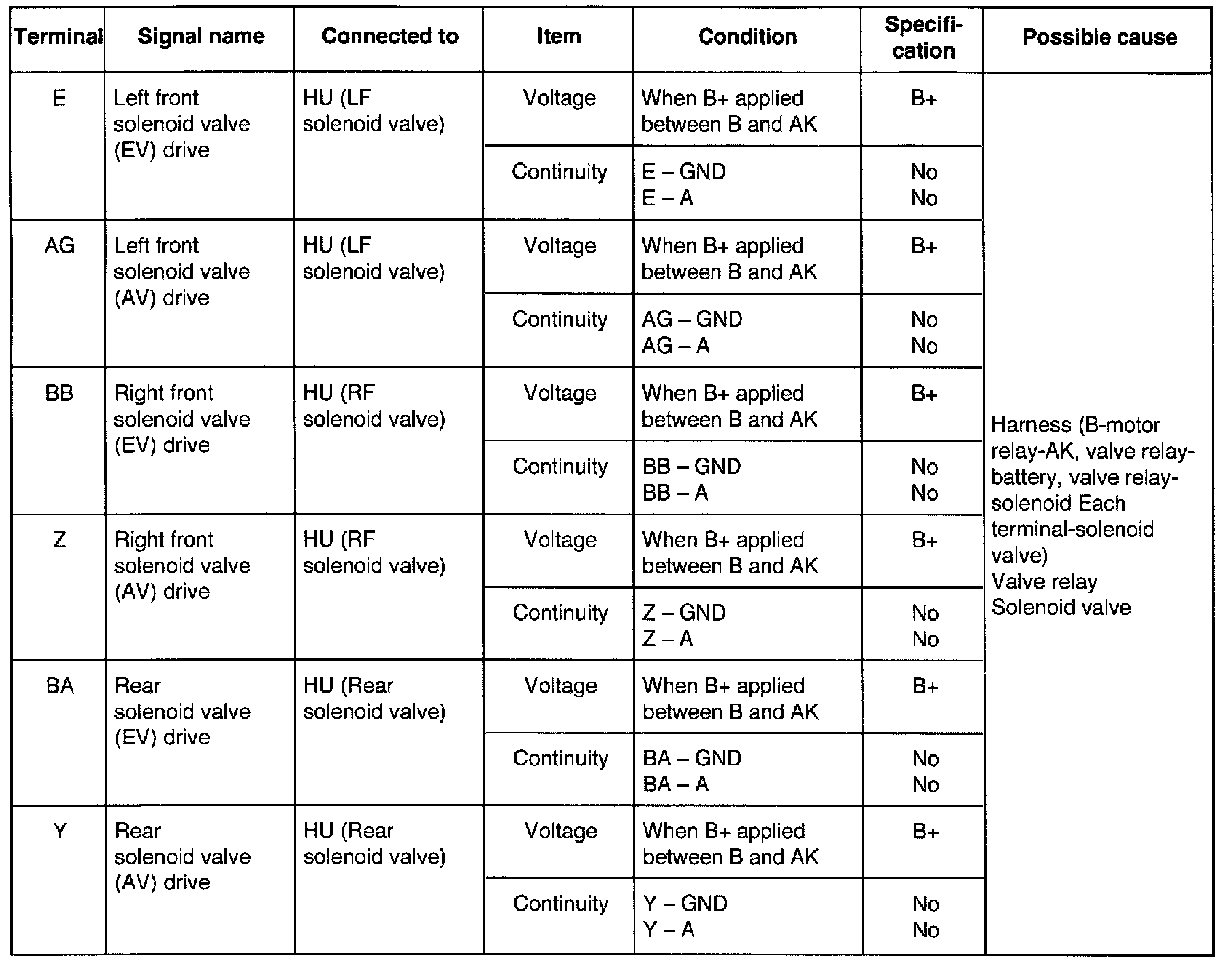

Fig. 113 ABS Control Module Inspection (Part 3 Of 3):
