Mazda
>>
1996
>>
MX-5 Miata L4-1.8L DOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Locations
>>
At Charging System, Starting System
At Charging System, Starting System

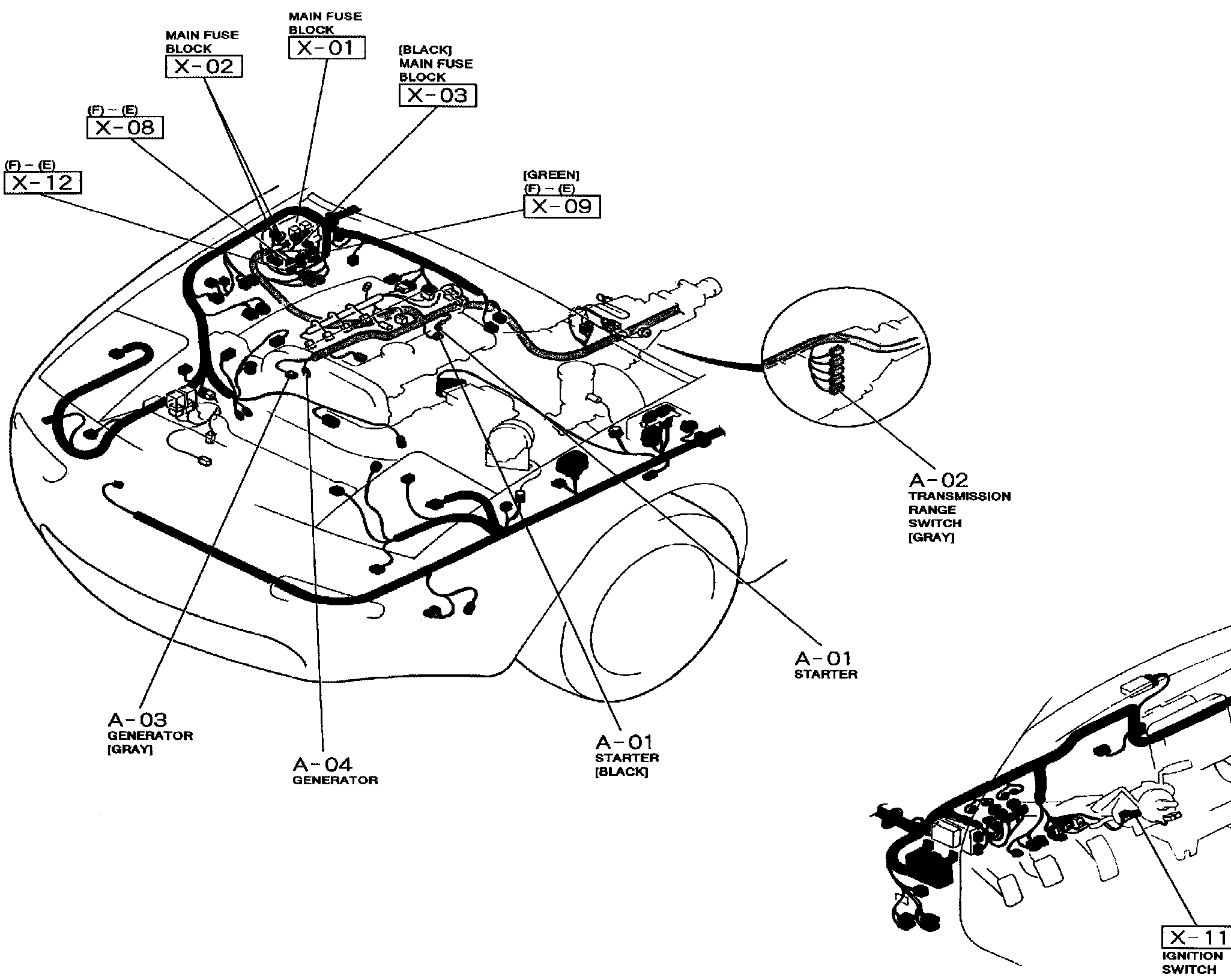

t��\Connector Locations:
