Home >> Mazda >> 1996 >> MX-6 L4-1991cc 2.0L DOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Central Control Module >> Diagrams >> Electrical Diagrams >> Central Processing Unit (CPU) (1/2), Theft-Deterrent Sys (1/2)

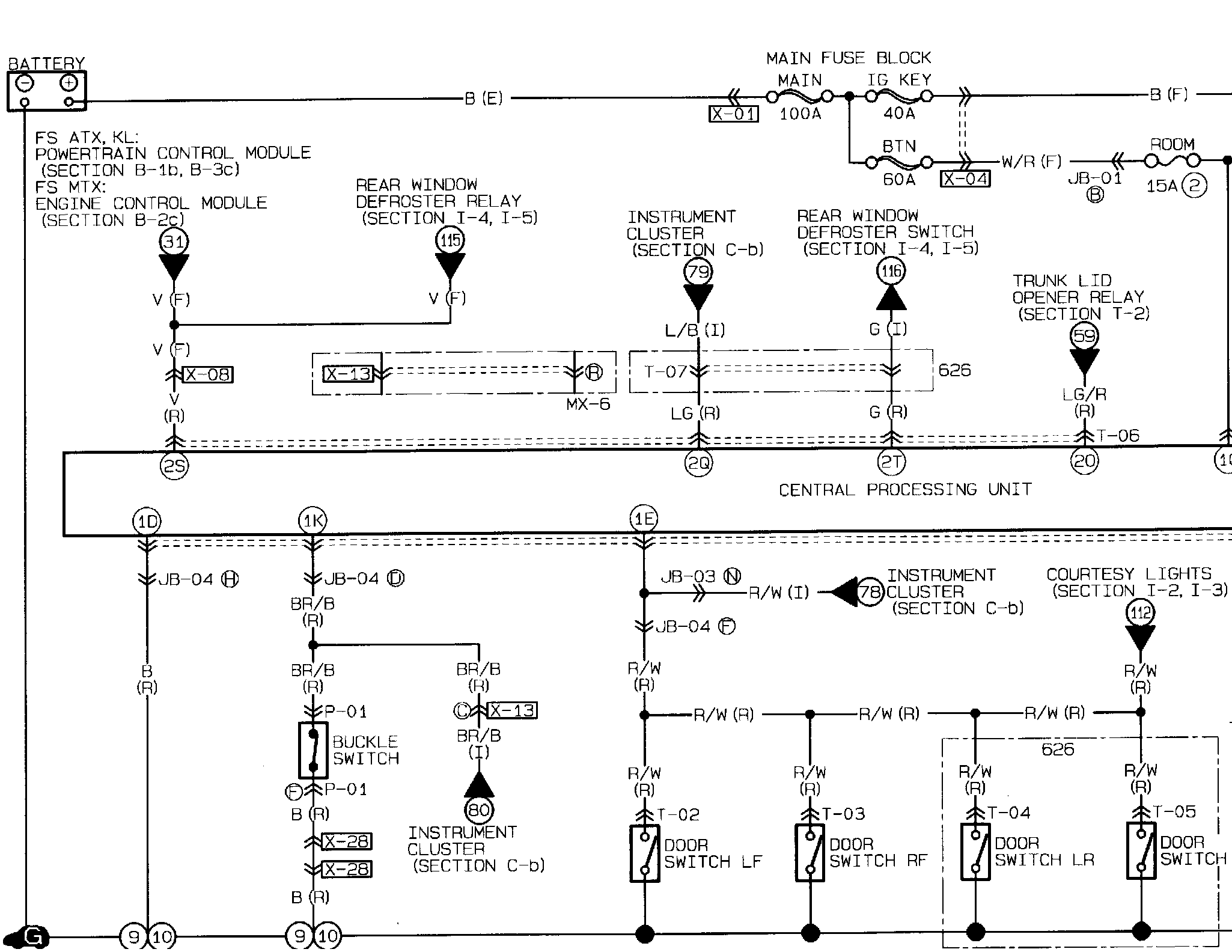

Central Processing Unit (CPU) (1/2), Theft-Deterrent Sys (1/2)

��Central Processing Unit (CPU) (1/2), Theft-Deterrent System (1/2):
