Condenser Fan Motor: Service and Repair

Removal and Installation





1. Remove the fresh-air duct.
2. Disconnect the condenser fan connector.

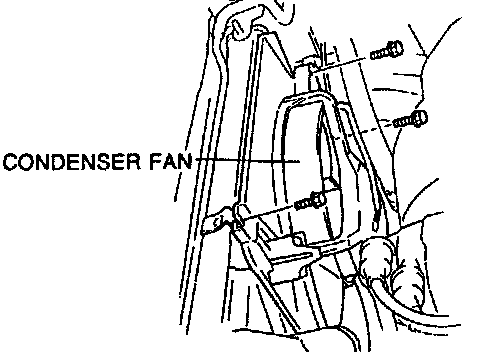

3. Remove the condenser fan as shown in the figure.
4. Install in the reverse order of removal.
