Camber
1. Loosen cam nut on upper lateral link.2. Turn cam bolt, Fig. 4, to provide correct camber angle, Fig. 5. Turning adjusting cam bolt one graduation changes camber about 7/30°.
3. Torque cam nut to 58 - 86 ft.lb.
4. Adjust toe-in as described under "Toe-In.

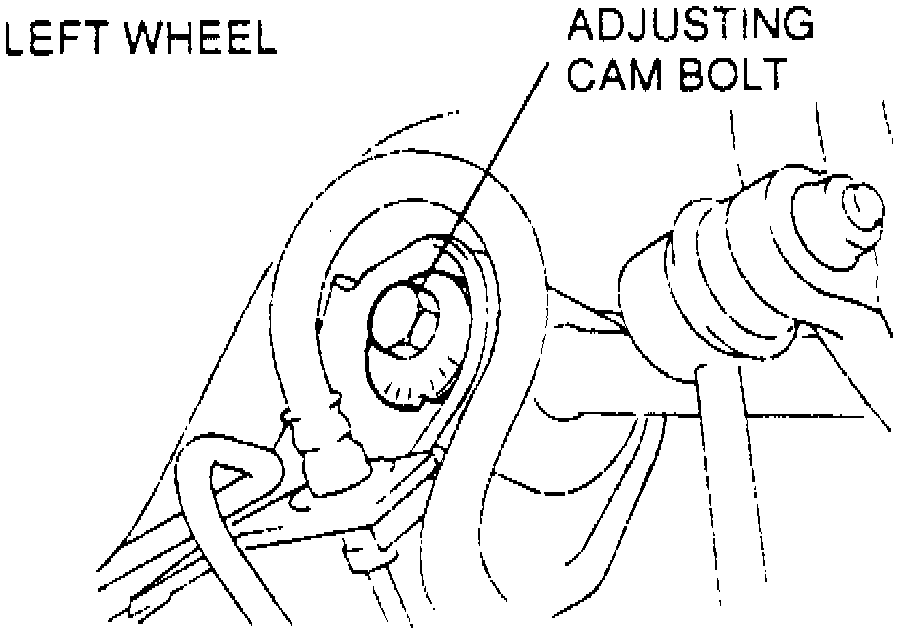

Fig. 4 Rear Adjusting Cam Bolt Location:

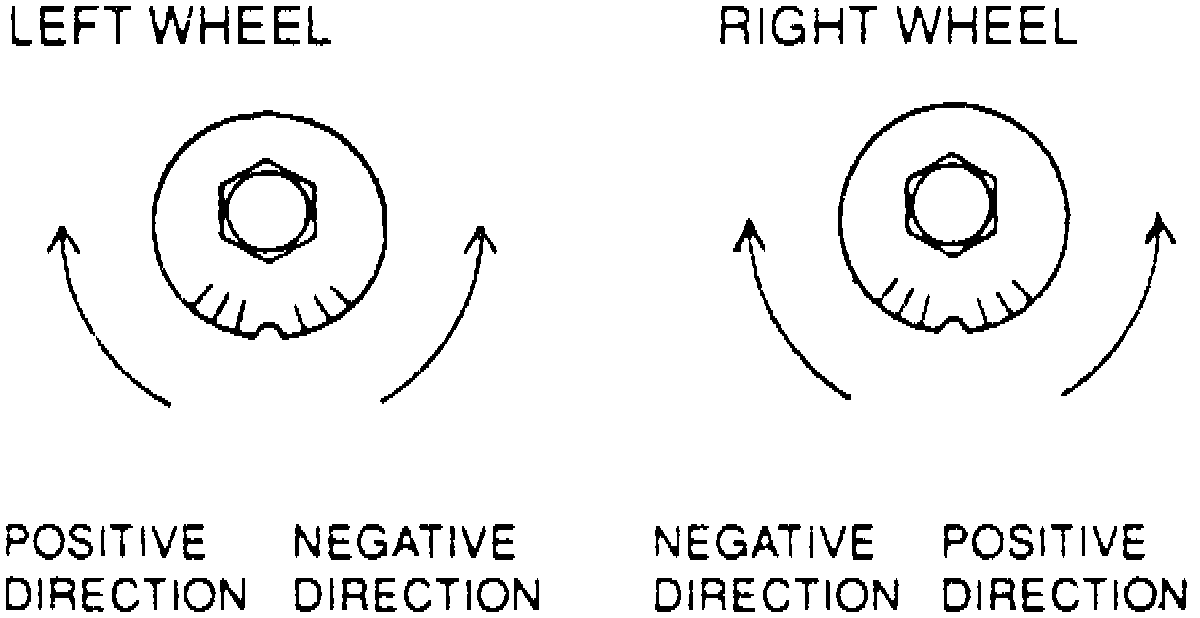

Fig. 5 Rear Camber Adjustment:
