Exhaust System: Service and Repair

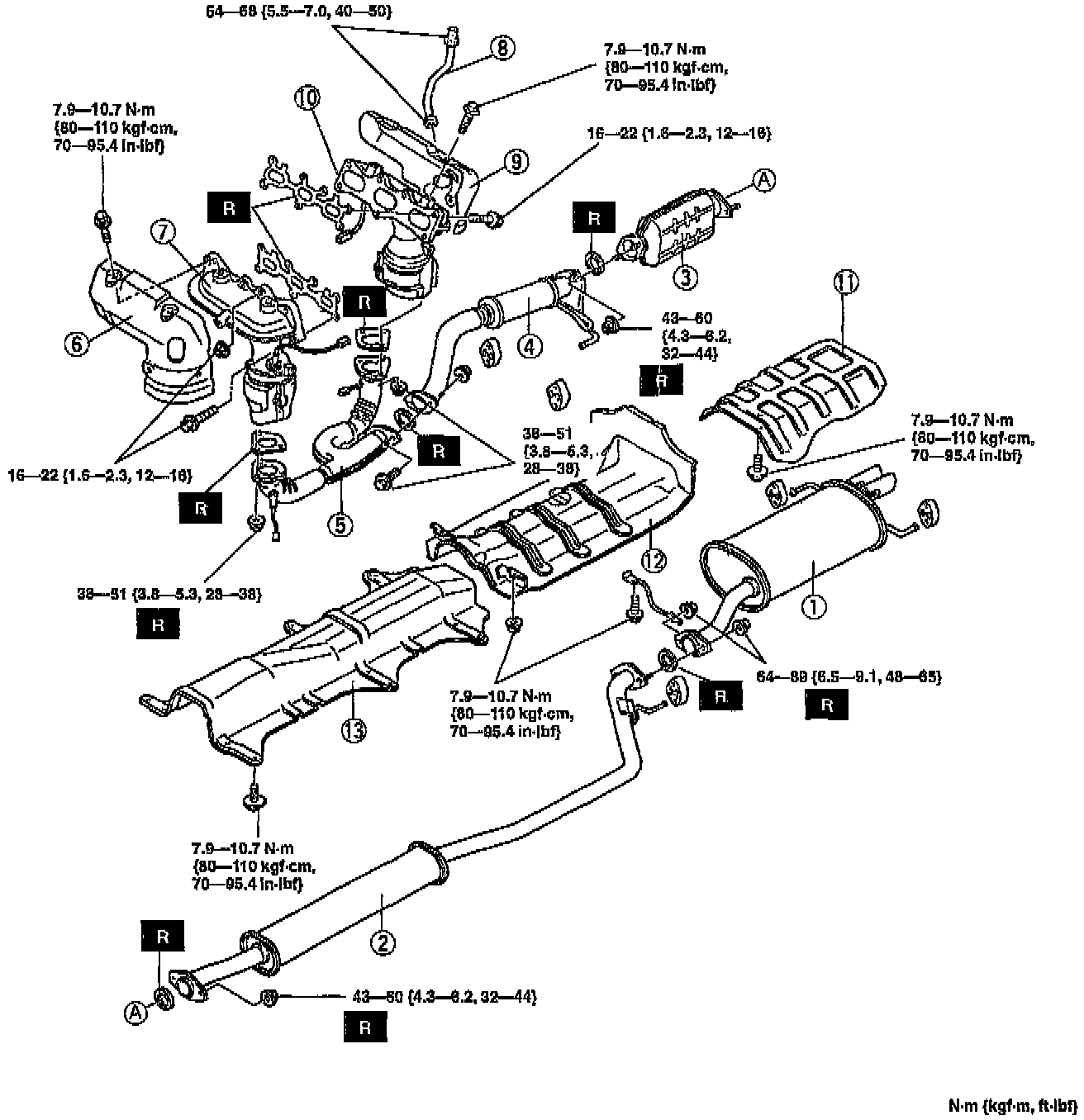

COMPONENT PARTS
Removal / Inspection / Installation
1. Remove in the order shown in the figure.
2. Visually check each part for damage. Replace if necessary.
3. Install in the reverse order of removal.




1. Main silencer
2. Presilencer
3. Three way catalytic converter
4. Flexible pipe
5. Front pipe
6. Insulator
7. Warm up three way catalytic converter (LH)
8. EGR pipe
9. Insulator
10. Warm up three way catalytic converter (RH)
11. Insulator
12. Insulator
13. Insulator
