Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1996
>>
Millenia V6-2496cc 2.5L DOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

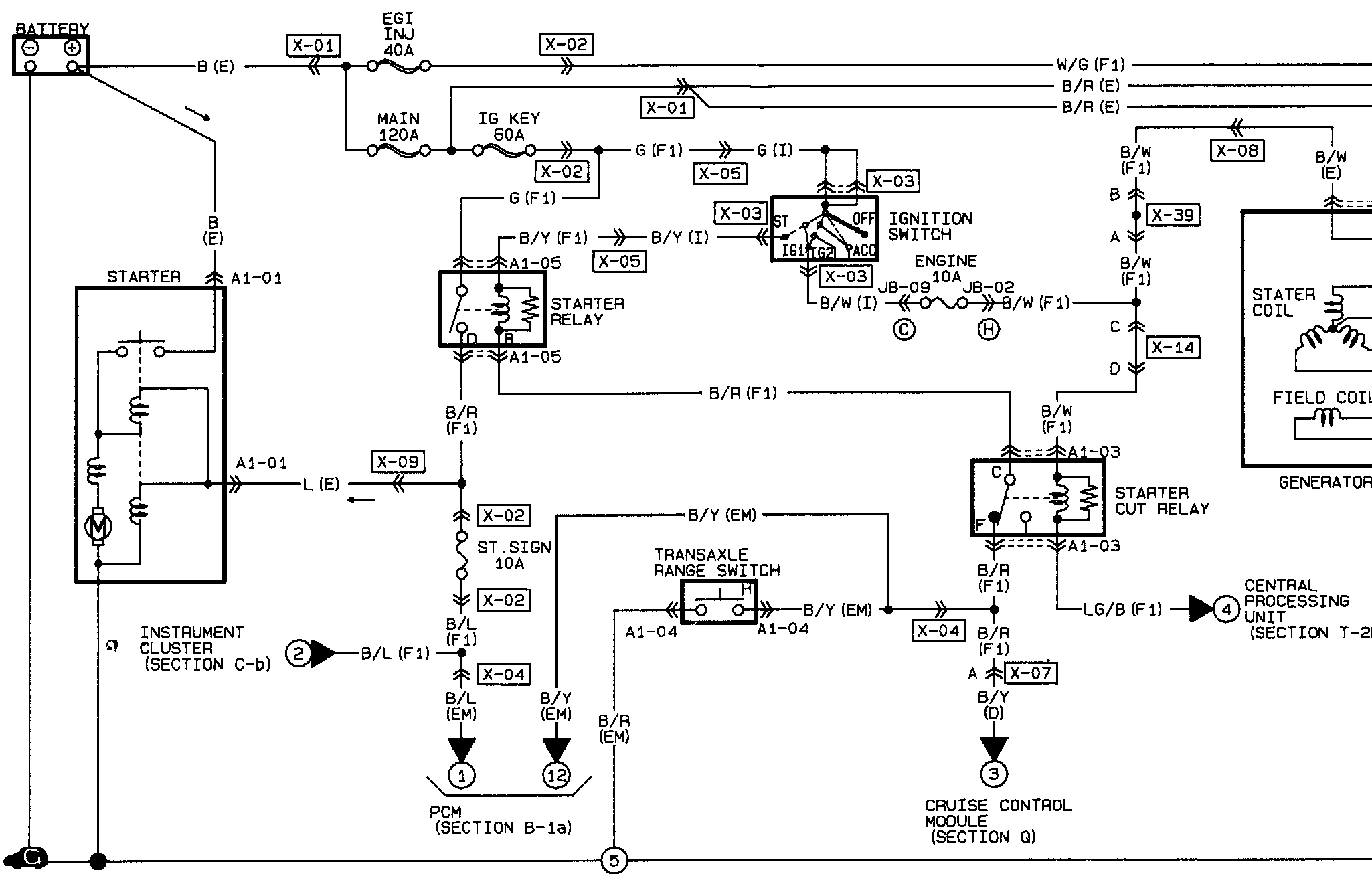

�/ ]Charging System, Starting System:
