Air Mix Wire Adjustment

Air Mix Wire Adjustment




1. Set the temperature control lever at MAX COLD.
2. Connect the air mix wire to the air mix link.

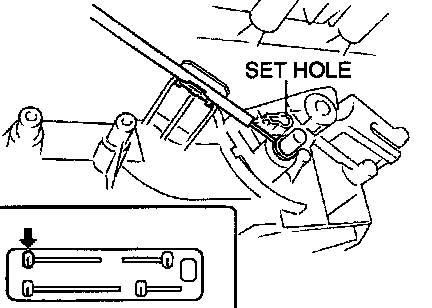

3. Set the air mix link to MAX COLD and insert a screwdriver into the set hole.
Clamp the air mix wire.
4. Verify that the temperature control lever moves in its full stroke.
