For Vehicles WITHOUT the 8-Pin Intermediate Connector

Keyless Entry/Security Installation Procedures (Addendum - For Vehicles WITHOUT The 8-Pin Intermediate Connector)

NOTE:
Use these instructions to replace Steps 17 and 18 ONLY

A. Locate the RED/BLUE wire in the 8-pin connector as shown below.

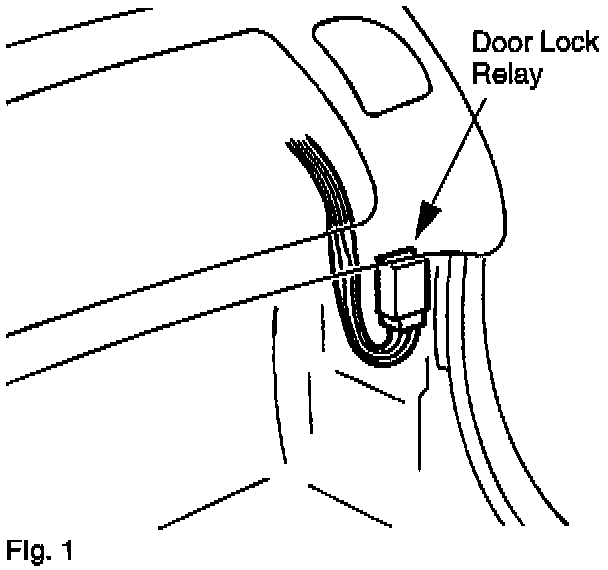

^ Locate the green door lock relay at the passenger's side kick panel (just below dash). Refer to Fig. 1

NOTE:
The passenger's side kick panel was removed in Step 15.

^ Locate the RED/BLUE wire coming down from the 8-pin door lock relay connector.

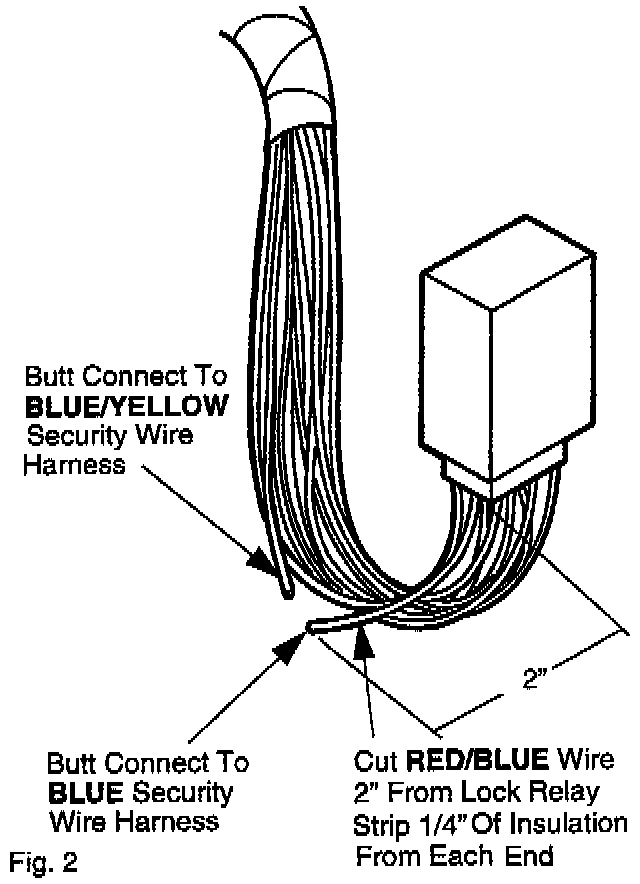

B. Connect the RED/BLUE wire of the 8-pin connector to the security harness as shown. Refer to Fig. 2

New Step 17.

^ Cut the RED/BLUE wire 2" away from the door lock relay 8-pin connector. Refer to Fig. 2

^ Strip 1/4" of insulation from each end on the cut wire. Refer to Fig. 2

New Step 18.

^ Butt splice the BLUE security harness wire to the RED/BLUE wire leading to the door lock relay 8-pin connector.

^ Butt splice the BLUE/YELLOW security harness wire to the RED/BLUE wire leading AWAY from the door lock relay 8-pin connector. Refer to Fig. 2

NOTE:
The power door locks will not function correctly if this step is not performed as shown.

RETURN TO KIT INSTALLATION PROCEDURES
