Front

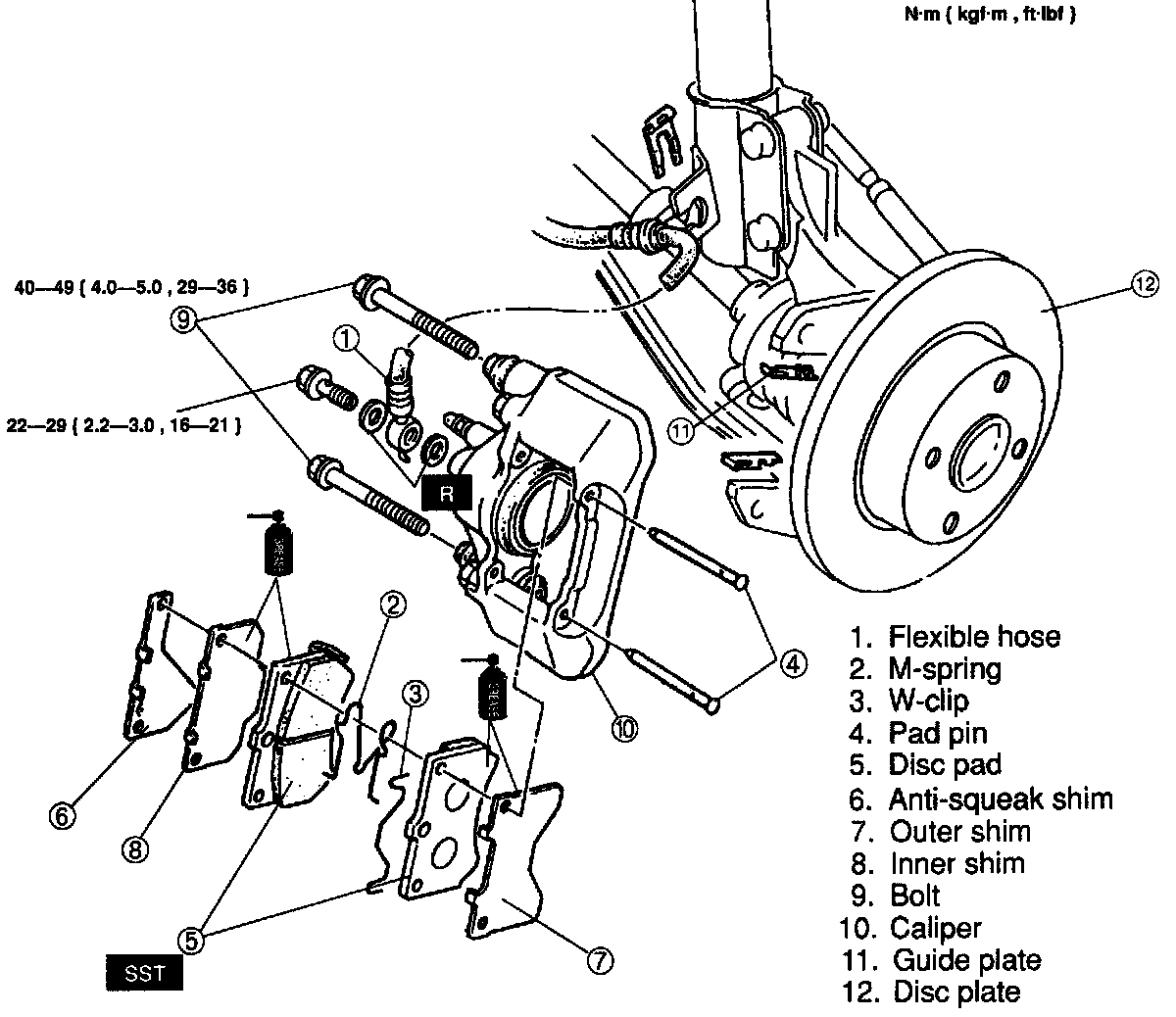

Removal / Installation





Disc Pad Installation Note



1. Push the piston fully inward by using the SST.
2. Install the disc pad.

After installation, depress the pedal a few times. Then rotate the wheel by hand, and verify that the brakes do not drag.
