Compressor Clutch Relay: Testing and Inspection

A/C Relay Inspection

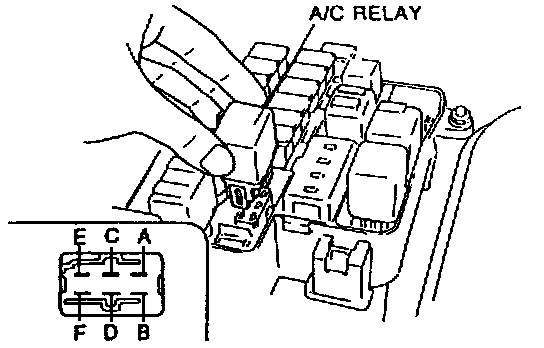

1. Remove the relay.

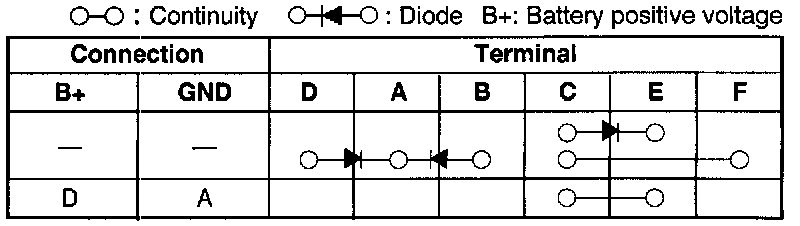

2. Connect battery positive voltage and check for continuity between the relay terminals as indicated above.
