Pinpoint Test 17


Flowchart No.17 Symptom Brake system warning light remains illuminated with parking brake released and brake fluid level above MIN

Possible cause
^ Damaged parking brake switch
^ Short circuit of wiring harness

Remedy
1. Disconnect the parking brake switch connector.

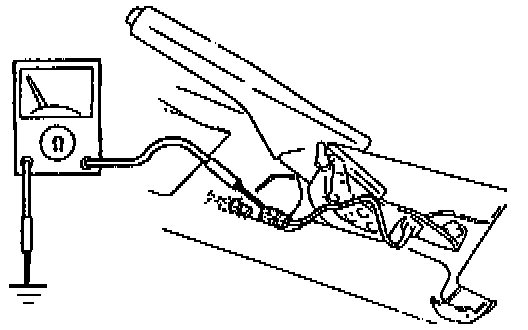

Ohmmeter Connection:

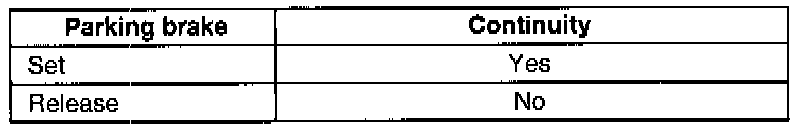

Reference:





2. Check for continuity between the switch terminal and ground.
3. If correct, repair the wiring harness (instrument cluster-parking brake switch).
4. If not as specified, replace the parking brake switch.
