Home >> Mazda >> 1997 >> 626 DX L4-2.0L DOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Motor >> Service and Repair

Wiper Motor: Service and Repair




Removal/Installation

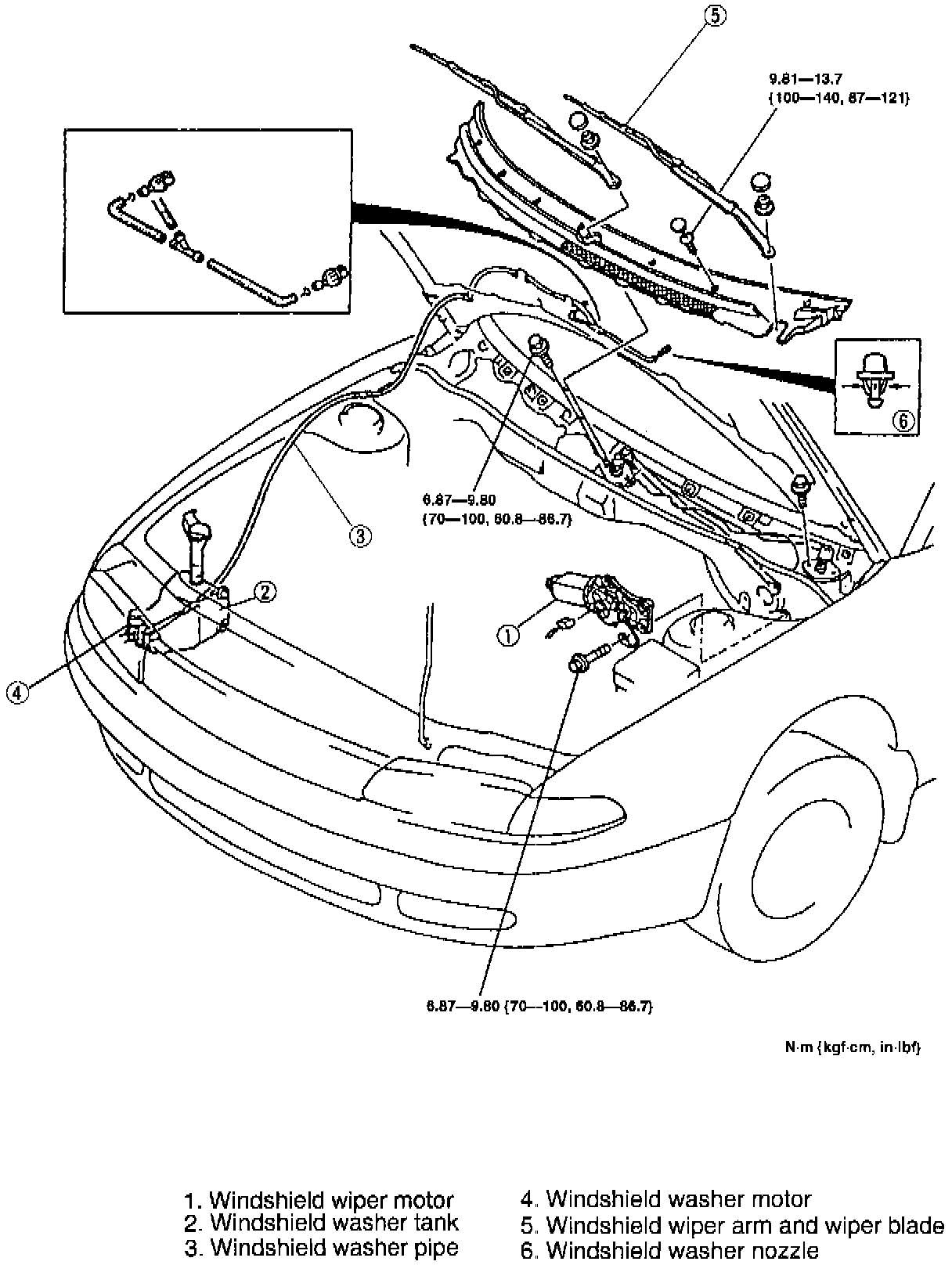

1. Remove in the order shown in the figure.
2. Install in the reverse order of removal.
