Engine Control System, EC-AT Control System
Engine Control System, EC-AT Control System

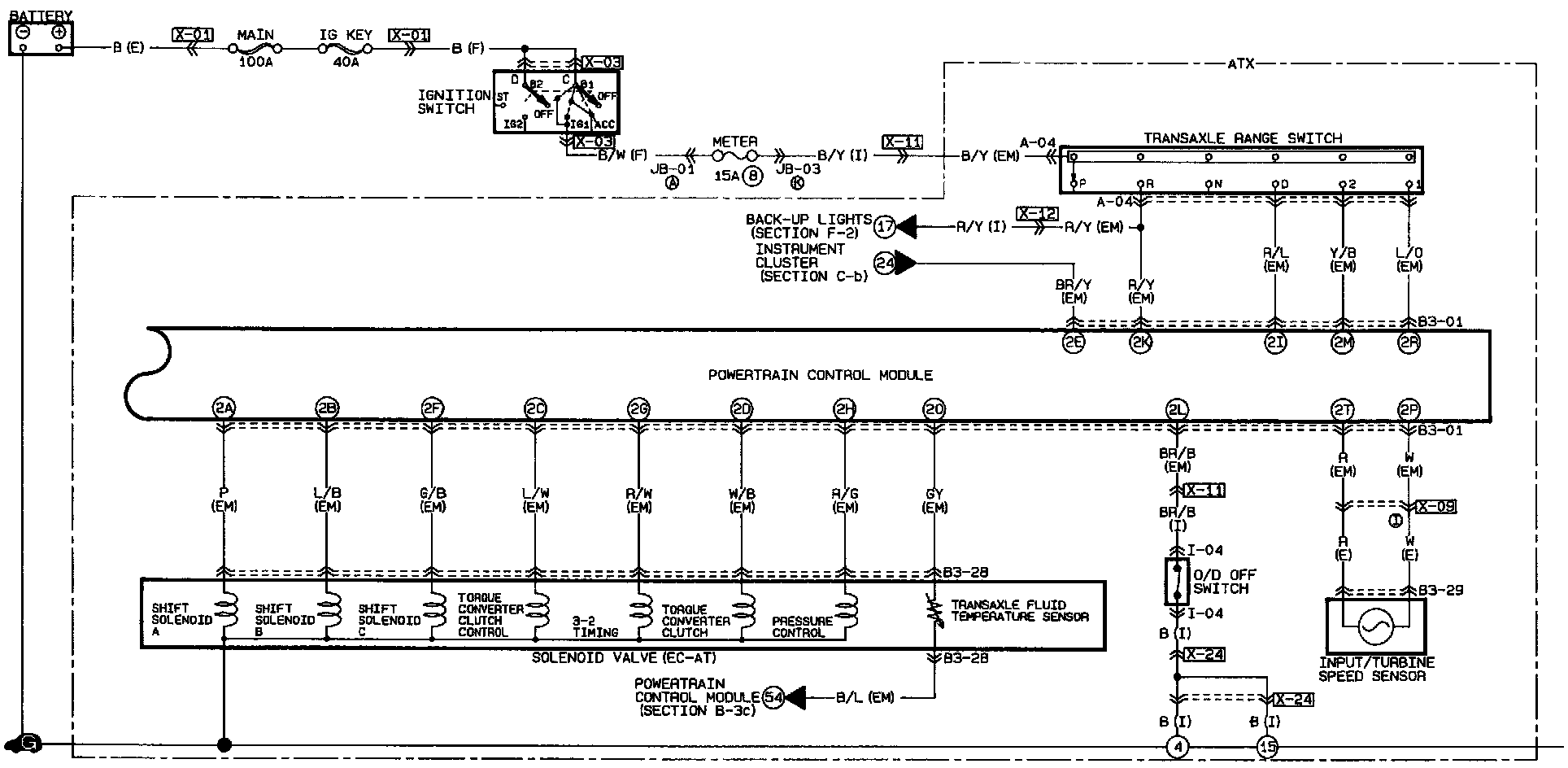

Engine Control System, EC-AT Control System:
