Quick Diagnostic Symptom Chart

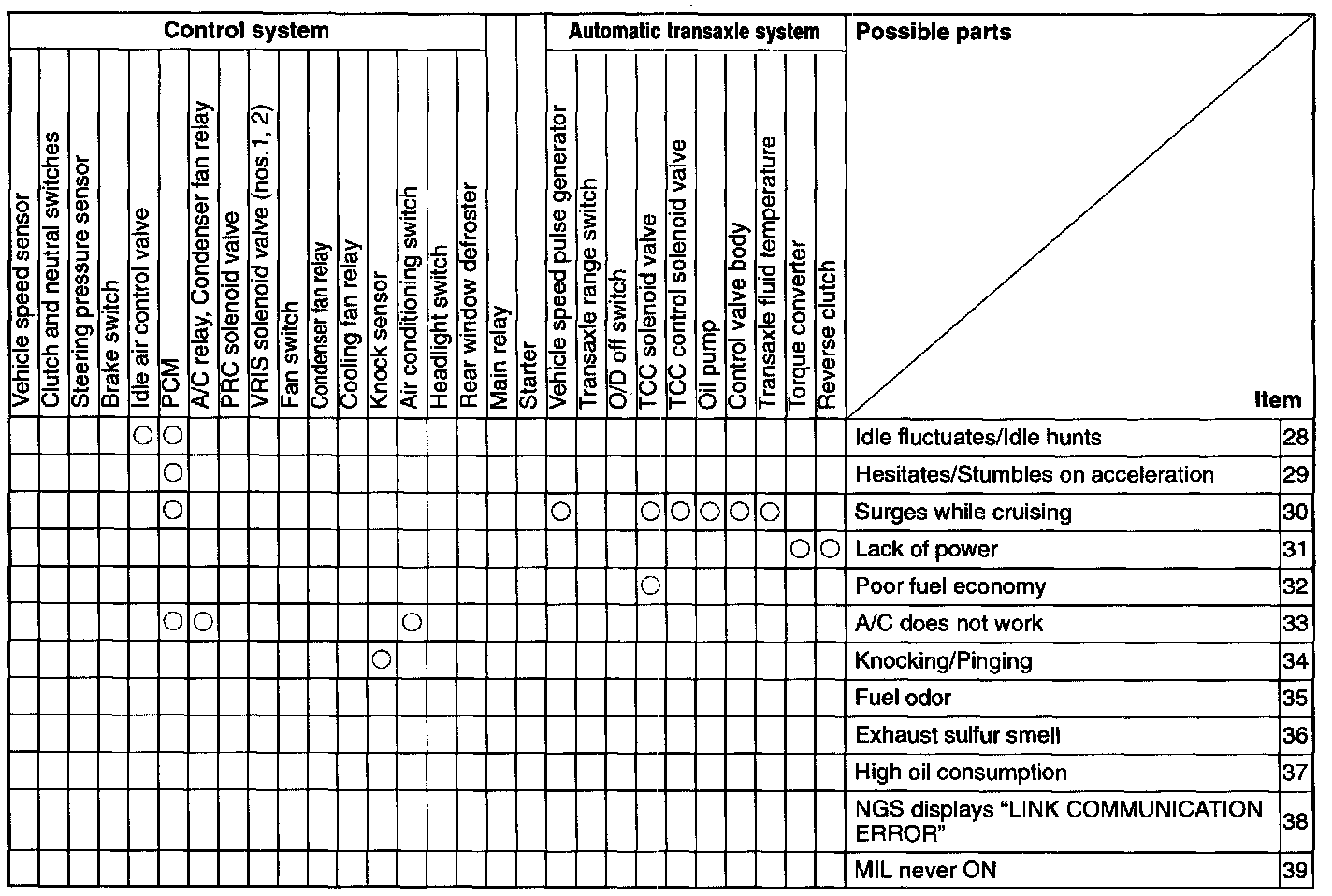

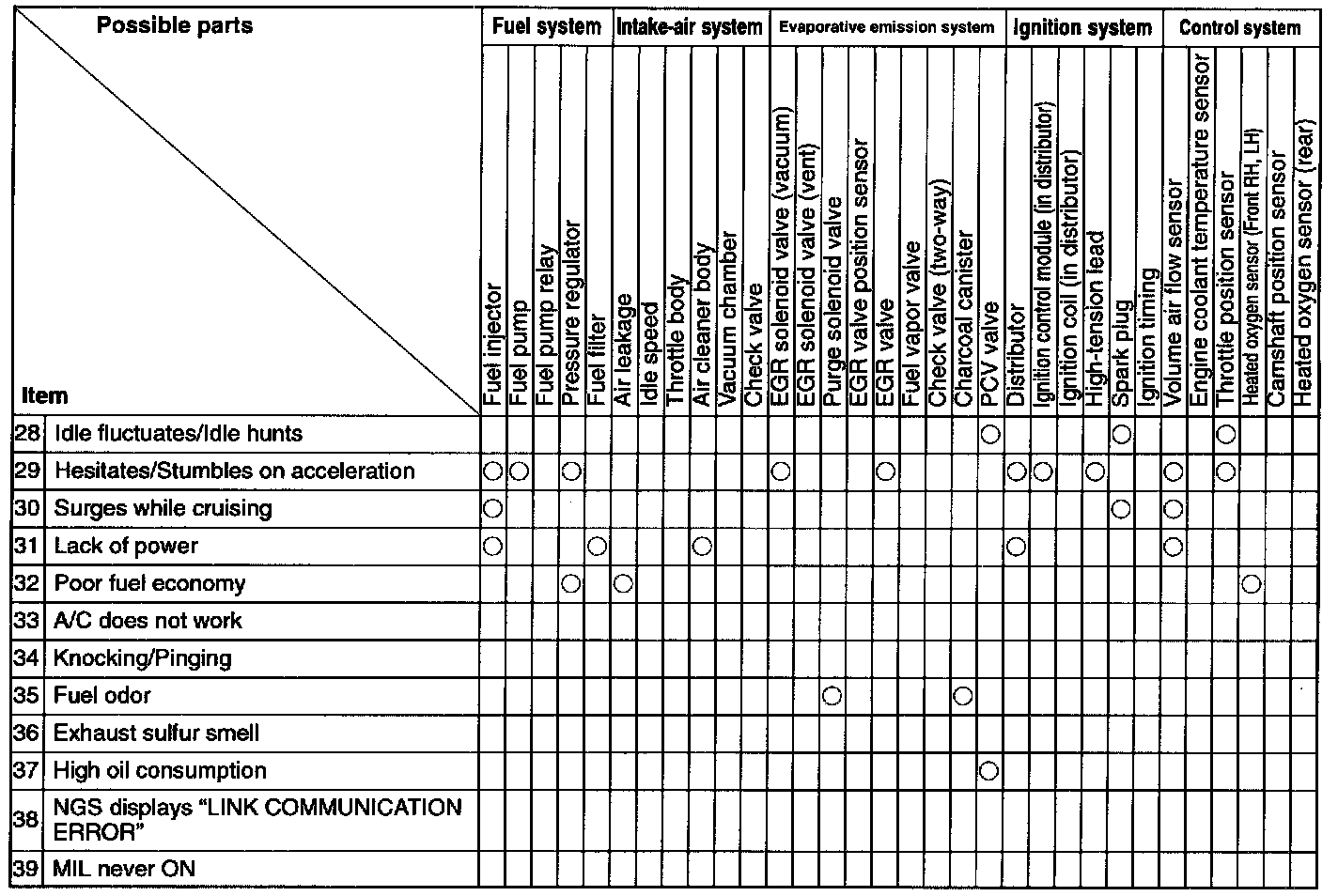

Quick Diagnosis Chart (1 Of 4):




Quick Diagnosis Chart (2 Of 4):




Quick Diagnosis Chart (3 Of 4):




Quick Diagnosis Chart (4 Of 4):




This Quick Diagnosis Chart shows the relationship between troubleshooting items and inspection points.
