Trunk / Liftgate Relay: Testing and Inspection

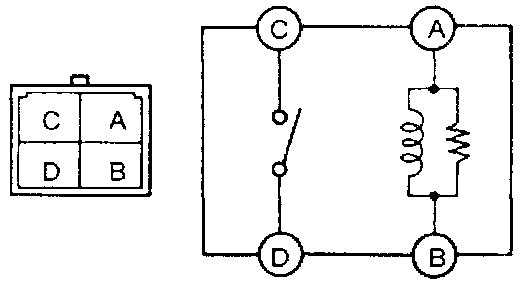

Terminal Identification:

Reference:

Inspection

1. Remove the trunk lid opener relay.

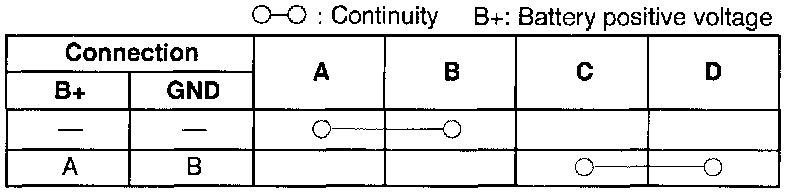

2. Apply battery voltage and check for continuity between the relay terminals.
3. If not as specified, replace the trunk lid opener relay.
