Front Cross-Member: Service and Repair






REPLACEMENT
1. Support the engine with a hoist.
2. Lower the crossmember and other suspension parts as an assembly, and then separate the parts.

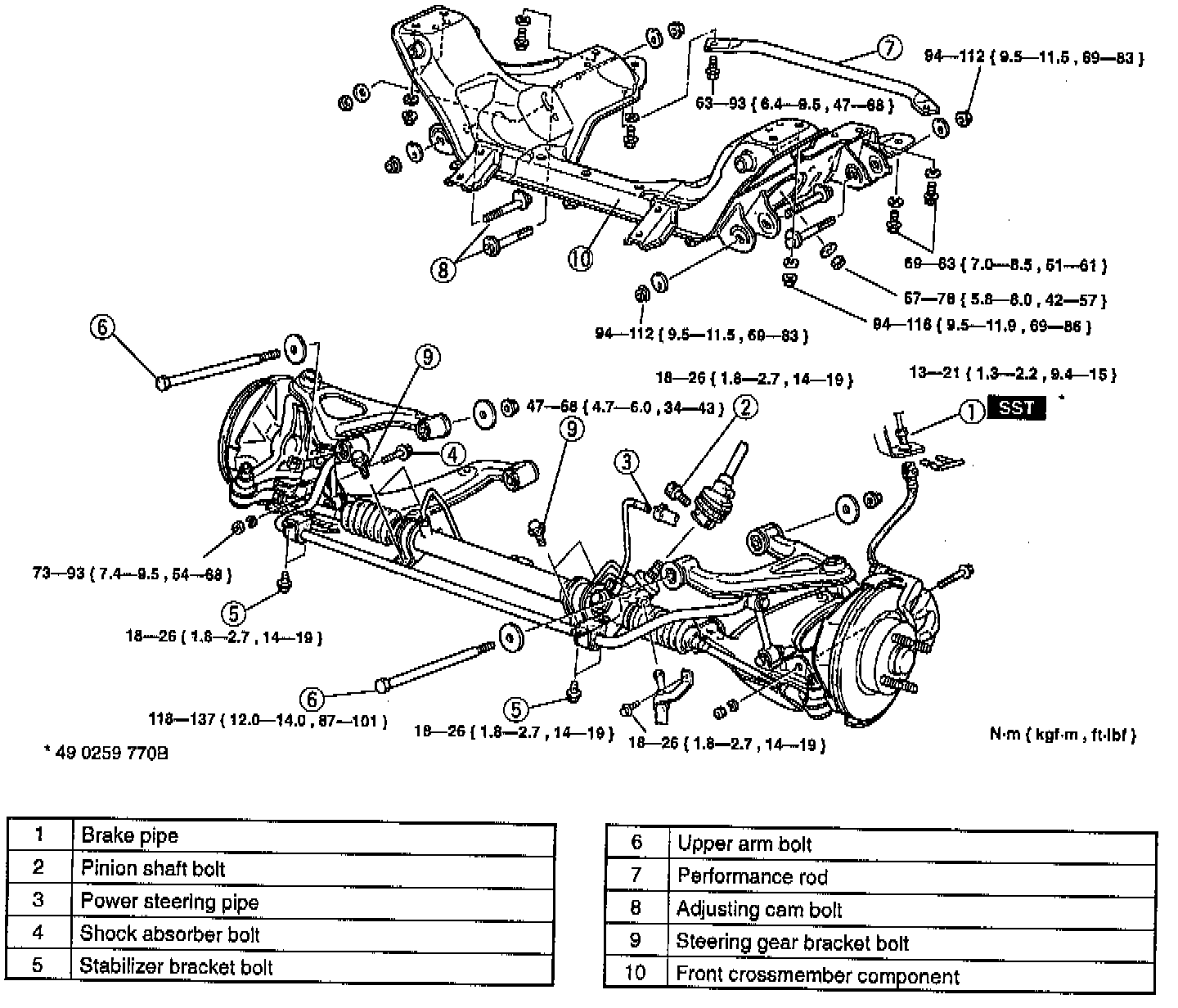

3. Remove in the order indicated in the illustration.
4. Install in the reverse order of removal indicated in the illustration.
