Cruise Control Servo Cable: Adjustments

Crusie Control Actuator Cable Adjustment

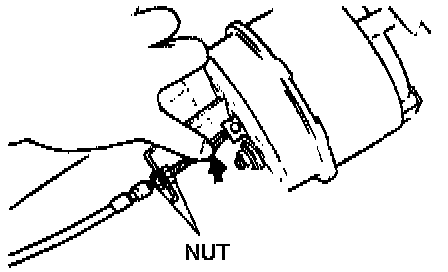

^ Adjust the nut so that the actuator cable free play is as specified when the actuator cable is pressed lightly.
Cable play on both the cruise actuator side and throttle body side
1.0-5.0 mm { 0.04-0.19 in)
