Compressor Clutch: Service and Repair

1. Remove the A/C compressor.

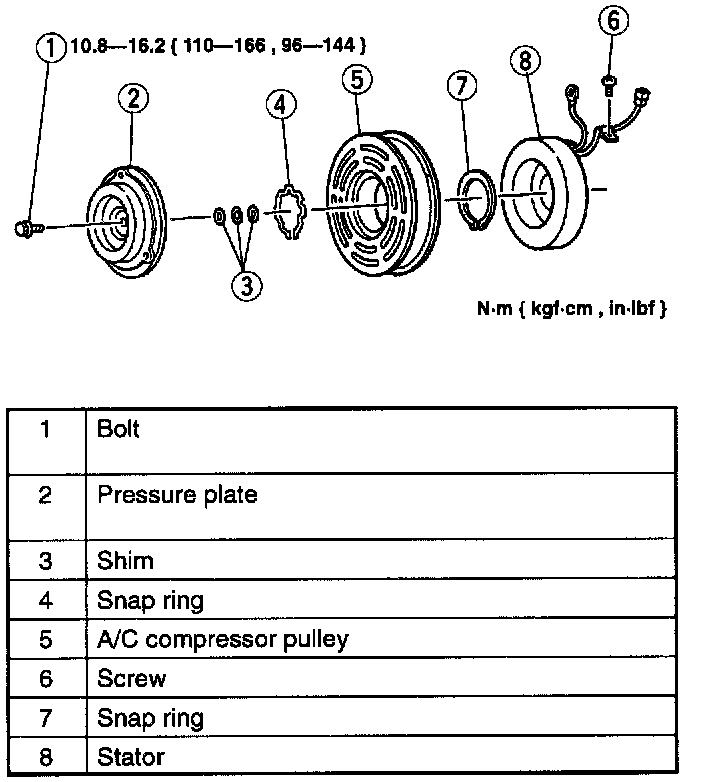

2. Disassemble in the order indicated in the table.

Bolt Disassembly Note

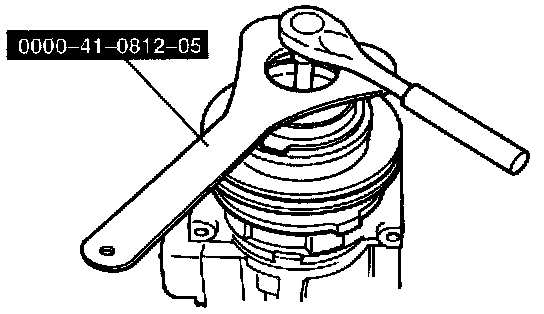

- Remove the bolt by using the SST.

Pressure Plate Disassembly Note




- Remove the pressure plate by using the SST.

3. Assemble in the reverse order of disassembly indicated in the table.
4. Adjust the magnetic clutch.
5. Install the A/C compressor.
