Disassembly and Assembly

1. Disassemble the magnetic clutch.
2. Disassemble in the order indicated in the table.

Shaft Seal Disassembly Note

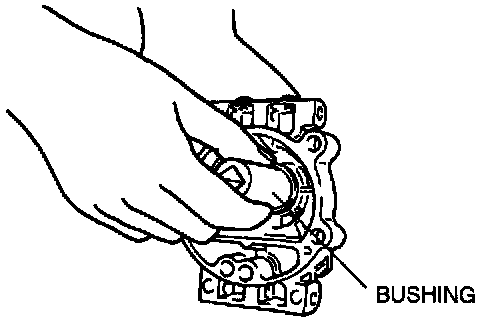

- Remove the shaft seal plate by using a suitably sized bushing.

3. Assemble in the reverse order of disassembly.

Shaft Seal Assembly Note

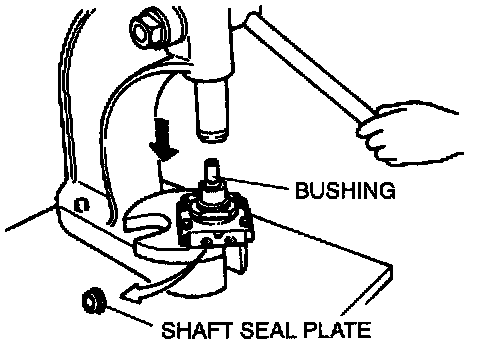

- Install the shaft seal plate by using a suitably sized bushing.

4. Fill the A/C compressor with the same amount of ND-OIL9 compressor oil as was drained before disassembly.
5. Assemble the magnetic clutch.
