Removal and Installation

1. Disconnect the negative battery cable.
2. Remove the center panel.
3. Disconnect the air intake wire from the blower unit.
4. Disconnect the air mix wire and airflow mode wire from the heater unit.

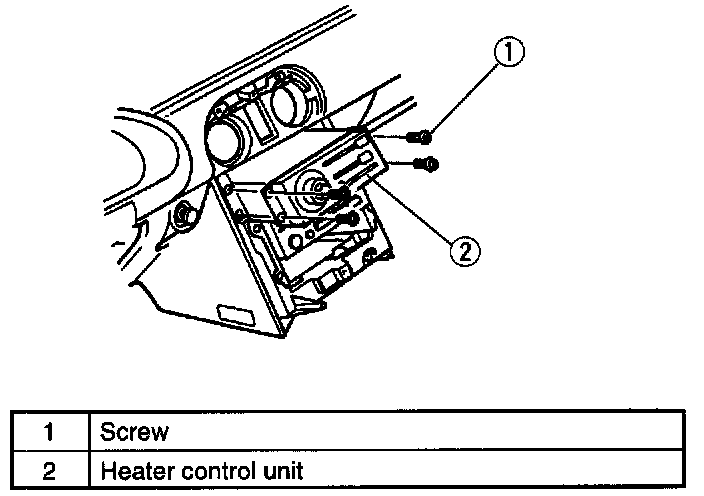

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
7. Adjust the air intake, air mix, and airflow mode wire.
