Main Fuse Removal/Installation
Main Fuse Removal/Installation
1.
Disconnect the negative battery cable.
2.

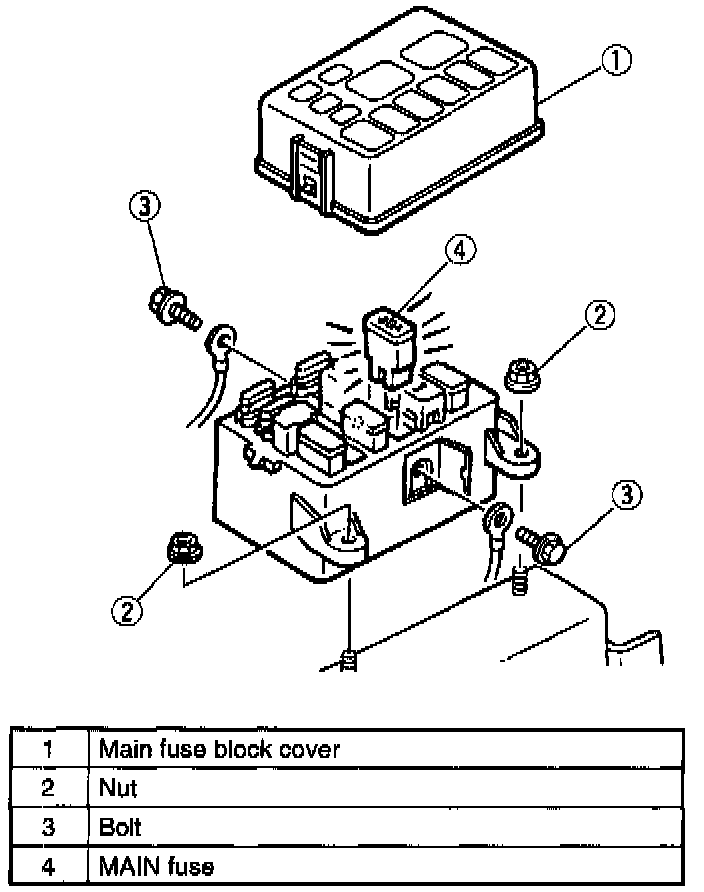

Remove in the order indicated in the table.
3.
Install in the reverse order of removal.
4.
Connect the negative battery cable.
