Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION SENSOR REPLACEMENT
1. Remove the ignition coil.

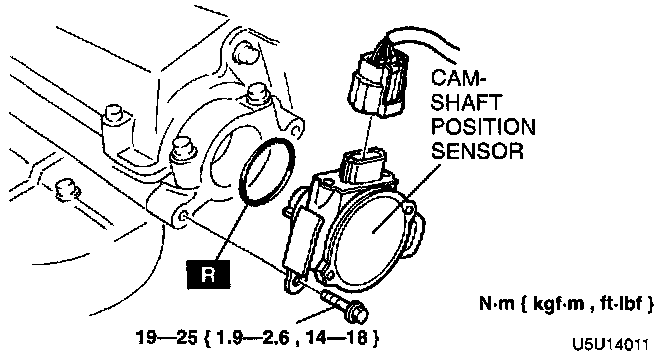

2. Remove the camshaft position sensor as shown in the figure.
3. Install in the reverse order of removal.

Torque mounting bolts to: 19-25 Nm (14-18 ft.lbs.).
