Clutch Switch: Testing and Inspection
CLUTCH SWITCH
INSPECTION
1.
Disconnect the clutch switch connector.
2.

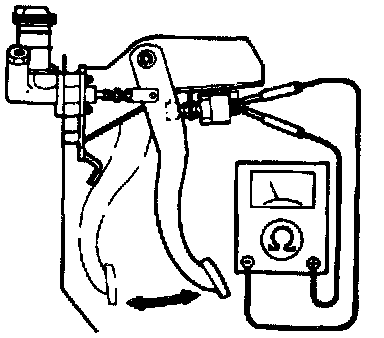

Check for continuity between terminals of the
clutch switch
by using an ohmmeter.
3.

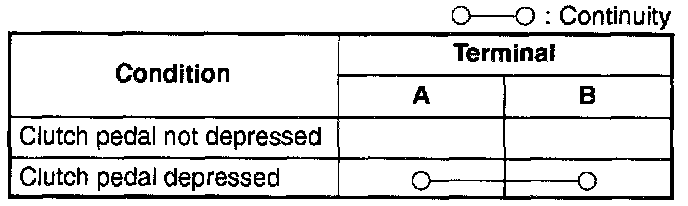

If not as specified, replace the
clutch switch
.
